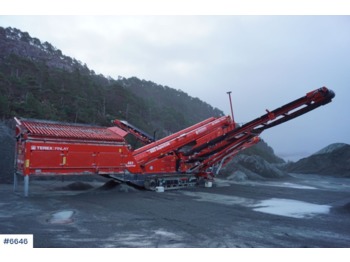

Грохот Terex Finlay 693+

The double deck Terex Finlay 693+ has been designed and developed to fulfill the demands of today’s high production producer. The new double deck screen configuration provides two full sized 20’ x 5’ (6.1m x 1.53m) screen decks. A high capacity belt feed hopper is available with remote tipping grid or double deck vibrating grid. Impressive features include hydraulic tipping reject grid complete with grouser bars, three on-board hydraulic folding conveyors and low level greasing access points. Washing equipment can be fitted to the screenbox if required.

CAT C4 Engine

4.25m (14ft) wide hopper – 8.0m³ (10.48yd³) capacity.

Remote control hydraulic tipping reject grid c/w grouser bars 4.25m x 100mm spacing (14′-0″ x 4″).

6.1 x 1.52m (20′ x 5′) top deck screen and 6.1 x 1.52m (20′ x 5′) bottom deck screen.

Catwalk around screen c/w handrail, kick board and access ladder.

Low level central greasing & emergency stops.
