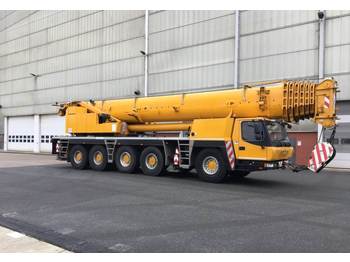

Вседорожный кран Grove GMK 5220

Main Data:

Model / Type of crane GMK 5220 / AT

Max. capacity (75%) / max. loadmoment (tm) 220 t at 2.5 m / 624 tm

Year / First taken into operation 2012 / 23.03.2012

Working hours chasis (h) / date 3743 h / 04.10.2020

Working hours superstructure (h) / date 10212 h / 04.10.2020

Mileage (km) / date 60300 km / 04.10.2020

Data Chassis:

Truck chassis type / Width GMK 5220 / 3 m

Carrier cabin wide

Additional heating existing / available

Engine (make/type) / hp / kW DB OM 502 LA / 571 / 420

Gearbox manufacturer / Type Allison / AG / HD 4076

Crane driveable from below

Drive and steering 10 x 8 x 10 / 1/2/3/4/5.

Type of axle suspension hydropneumatic

Size of wheels 16.00 R 25

Sparewheel 1

Controlled from support left, right

Support basis L/B 8,55 x 8,10 m

Trailer coupling D 19

TÜV / SP-acceptance validity 04.21 / 10.20

Data Superstructure:

Telescopic boom / boom sections 13,3 - 68 m / 7

Telescopic boom extension 2 x 8 m

Swing-away jib / Adapter 12 - 37 m / 5-40° hydr.

No. of winches 1

Winch 1 cable pull / cable Ø 93,5 kN / 22 mm

Engine (make/type) / hp / kW DB OM 906 LA / 231 / 170

Hookblocks / Crane hook (t) 80 t (DH) / 32 t / 12 t

Counterweight (t) 51 t / 26 t

Emergency operation of crane hydraulic available / existing

Oil cooler existing / available

Two working floodlights at pivot section electrically adjustable existing / available

Aircondition existing / available

Additional heating existing / available

Safe load indicator Grove EKS 5 / 75 %

UVV-acceptance validity 02.21

Other features:

bunk berth for carrier cabin; flight warning light

Subject to change.

Subject to prior sale.

Complete data sheet on request.
