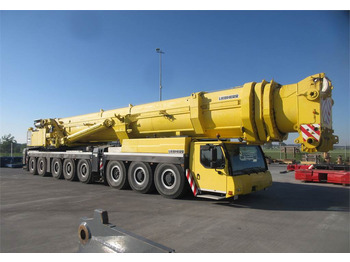

Вездеходный кран Liebherr LTM 1500-8.1/50

Main Data:

Model / Type of crane LTM 1500-8.1/50 / AT

Max. capacity (75%) / max. loadmoment (tm) 500 t at 3 m / 1610 tm

Year / First taken into operation 2014 / 16.06.2014

Working hours chasis (h) / date 1926 h / 12.06.2023

Working hours superstructure (h) / date 9085 h / 12.06.2023

Mileage (km) / date 43392 km / 12.06.2023

Data Chassis:

Truck chassis type / Width A80A / 3,00 m

Carrier cabin wide

Aircondition existing / available

Engine (make/type) / hp / kW Liebherr D 9508 A7 SCR / 686 / 505

Engine exhaust-stage III B / SCR

Gearbox manufacturer / Type ZF / SG / TC-Tronic

Crane driveable from below

Eddy current brake Telma

Drive and steering 16 x 8 x 12 / 1/2/3/4/7/8.

Type of axle suspension Niveaumatic

Size of wheels 16.00 R 25

Sparewheel 0

Controlled from support left, right

Support basis L/B 10,00 x 9,60 m

Tackle box at rear of carrier existing / available

TÜV / SP-acceptance validity 11.23 / 05.24

Data Superstructure:

Telescopic boom / boom sections 16,1 - 50 m / 4

Telescopic boom extension 14 m

Guyed telescopic boom TY3

Fixed Fly jib / Adapter 14 - 63 m / 0/20/40°

Luffing fly jib / Lattice fly jib 21 - 91 m

Rooster sheave N 48 t

No. of winches 3

Winch 1 cable pull / cable Ø 126 kN / 25 mm

Winch 2 cable pull / cable Ø 126 kN / 25 mm

Winch 3 cable pull / cable Ø 126 kN / 25 mm

Engine (make/type) / hp / kW Liebherr D 936 A7 SCR / 367 / 270

Engine exhaust-stage III B / SCR

Hookblocks / Crane hook (t) 171 t (DH) / 85 t (DH) / 12,5 t

Counterweight (t) 135 t / 30 t

Working area limitation existing / available

Emergency operation of crane hydraulic available / existing

Aircondition existing / available

Safe load indicator Liebherr LICCON / 75 %

UVV-acceptance validity 03.24

Other features:

12 V-socket in crane cabin; 12 V-socket in driver's cabin; 8 counterweight slabs each with 7,5 t instead of 4 slabs with 15 t to get a better weight distribution for the transport; additional fuel tank (300 liter); bunk berth for carrier cabin; fog lamp; head section 3,5 m to use the fixed jib as assembly jib 8,2 m; remote diagnosis with GSM-module; spacer

Subject to change.

Subject to prior sale.

Complete data sheet on request.
