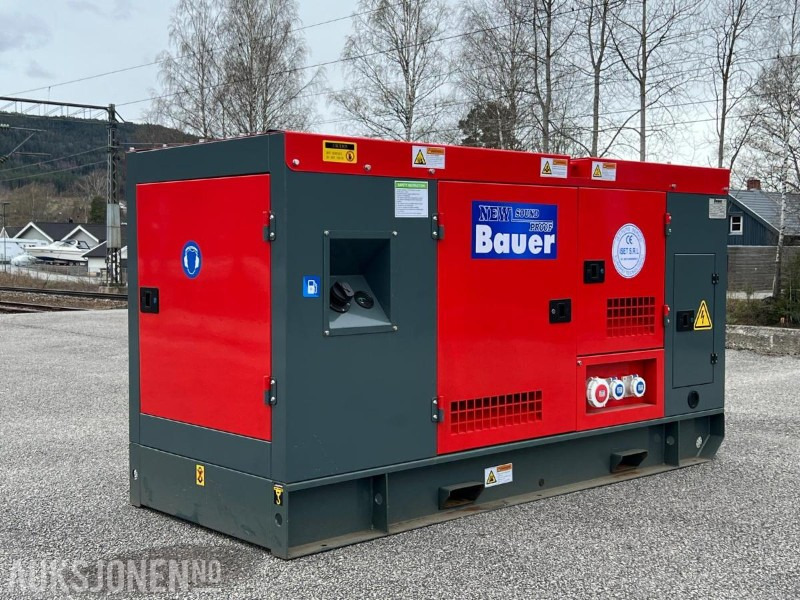

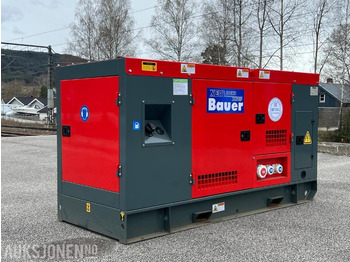

Строительное оборудование 2022 NYTT 12 KW DIESEL Stamford STRØMAGGREGAT BAUER GFS-12 ATS

CE-merket: Ja

-

Karosseritype: Fastspent ramme

-

Hyttetype: Lukket

-

Tilleggshydraulikk: Ja

-

Samsvarserklæring: Nei

-

Vedlikeholdsavtale: Nei

-

Nytt ubrukt Tysk strømaggregat.

Housing dimensions and weight:

Dimensions L x W x H [mm] approx. 2100 x 850 x 1120

Weight dry approx. [Kg] 680

Tank capacity [L] 50

Housing lockable Yes

Transport device forklift pockets [external distance 1.00m] / crane eyelets

Housing colors RAL 7012 / RAL 3000

Autonomy:

Running time [approx. hours] 8-10 per tank filling

Operating noise:

Sound pressure level LPA [7m] [db(A)] 75

Engine:

Brand Ricardo

Model ZH490D/22KW

Fuel type Diesel

Emissions level Non Emission Certified

Number of cylinders 4

Displacement [L] 2.54

Compression ratio 17:1

Bore x stroke [mm x mm] 90 x 100

CO² emissions ka (Stage III)

CO² test procedure ka (Stage III )

Cycle four-stroke speed

controller Mechanical

speed [rpm] 1500

Starter Electric with battery

On-board voltage [V] 12V / 24V

Battery voltage [Ah] 230 / 400

Cooling system Water cooling

Thermostat (°C) 71-85

Maximum water temperature 98

Exhaust system Soundproof

Maintenance interval 1 x per year or every 250 operating hours (whichever comes first)

Filter & oil change 1 x per year or every 250 operating hours (whichever comes first)

Generator:

Brand Stamford

Model name YHG/12kW 1500 rpm

Generator system Brushless, self-exciting, AVR with automatic voltage regulation, 100% copper wire winding

Generator type Synchronous

Insulation class H

Voltage regulation Electronic

IP protection class 23

Number of phases 3

Frequency 50 Hz

Frequency tolerance ≤ ± 1%

Voltage stability at speed deviation -5% +30 % (%) 1

power factor 0.8 cos φ (lagging)

Voltage regulator AVR

outlet mode 3 phase conductors / 1 neutral conductor

Outputs 1 x CE 1-phase 16A / 1 x CE 3-phase 16A / 1 x CE 3-phase 32A / terminal strip for direct House feed or ATS

circuit breaker Main circuit breaker

Degree of protection IP23

Altitude ≤ 1000m

Excitation system Brushless, self-exciting, AVR with automatic voltage regulation, 100% copper wire winding

Network form TT network

Telephone influence factor (TIF) ≤ 50

THF ≤ 2%

Voltage regulation, stationary state ≤ ± 1%

Transient state voltage ≤ -15%~+20%

Control panel:

Brand SmartGen

Model name HGM 6120N

LCD display Resolution 132 x 64 pixels Backlit

Adjustable display languages ​​Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French

Operation Physical push button

screen Acrylic glass

Screen & buttons Silica gel panel and buttons can be used for safe operation in case of temperature fluctuations,

connections via plug-in connections RS485 communication port, can carry out 3 remote functions via MODBUS protocol.

CANBUS port, connected to the electronic injection with J1939, to monitor commonly used parameters (water temperature, oil pressure, speed and fuel consumption, etc.), control start, stop and speed (controller with CANBUS port is required)

Via CANBUS port Suitable for 3P4W, 3P3W, 1P2W and 2P3W (120V/240V), 50Hz/60Hz AC network, measurement of 3-phase voltage, 3-phase current, frequency, power parameters of network/generators.

PCL Editor gives the user access to configurable features to meet specific application requirements.

Monitoring function Operating status, error conditions and measured values ​​are displayed on the LCD display and the LEDs on the front

Resources:

We use the following operating resources in original equipment quality. Please make sure to use these or replace them with at least technically equivalent qualities. If you have any further questions, please consult the resources FAQ and/or contact your petroleum dealer or gas station.

Oil / tank capacity in liters ROWE Hightec Formula Super SAE 15W-40 / 7.0 liters

antifreeze / tank capacity in liters ROWE Hightec Antifreeze AN-SF 12+ / 11.0 liters *

Fuel / tank capacity in liters Premium Diesel depending on availability / 50 .0 liters

• With a mixing ratio of 1:1, 50% of the tank volume of water or antifreeze is required.

SHELL© V-Power, Aral@ Ultimate or similar
