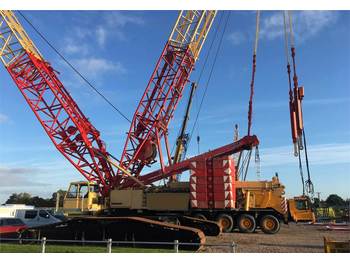

Гусеничный кран Liebherr LR 1400/2

Main Data:

Model / Type of crane LR 1400/2 / CC

Max. capacity (75%) / max. loadmoment (tm) 400 t at 4.5 m / 5248 tm

Year / First taken into operation 2009 / 15.01.2009

Working hours chasis (h) / date - h / 05.11.2020

Working hours superstructure (h) / date 11283 h / 05.11.2020

Mileage (km) / date - km / 05.11.2020

Data Chassis:

Crawler chassis 8,70 m

Support plates 1,20 m

no. of driving gears 4

central counterweight 43 t

Hydraulic assembly jacks existing / available

Data Superstructure:

Main boom "S" 84 m

Derrick boom "D" 28 m

Counterweight frame "B" 10 t

Derrick counterweight ./.

Whip line / type 36 t / S, W, F

Boom head 350 t / S

Variable equipment S 84 m

Variable equipment SDB 84 m

No. of winches 4

Winch 1 cable pull / cable Ø 125 kN / 25 mm

Winch 2 cable pull / cable Ø 125 kN / 25 mm

Winch 3 cable pull / cable Ø 130 kN / 25 mm

Winch 4 cable pull / cable Ø 2x 125 kN / 25 mm

Engine (make/type) / hp / kW Liebherr D 936 LA6 / 367 / 270

Superstructure counterweight 155 t

No. of slewing gears 2

Hookblocks / Crane hook (t) 250 - 125 t (DH) / 36 t

Assembly cylinder for crawler support existing / available

Quick Connection existing / available

Mobile pin pulling device existing / available

Aircondition existing / available

Safe load indicator Liebherr LICCON / 75%

UVV-acceptance validity n.v.

Other features:

acoustical alarm when crawler moving; audible warning slewing gear; engine stop via air choke; remote diagnosis with GSM-module; spark arrestor

Subject to change.

Subject to prior sale.

Complete data sheet on request.
