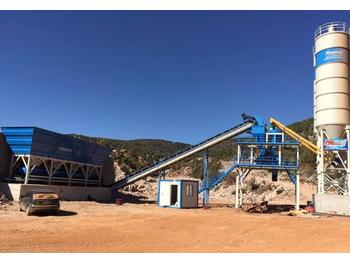

Бетонный завод PROMAXSTAR Stationary Concrete Batching Plant S100

• - Konstrollsystem
• - Kontrollraum
• Size:2350x3000x210 mm Material:40mm insulation panels. Other:The filling transmitters and other areas of the plant are equipped with glass so that it is visual.They are equipped with light outlet..
• - Staubfilter/Staubfang

Promax S 100

Plant Capacity

Compacted concrete capacity 100 m³/h

Air Compressor

Capacity (welded or bolted) 1400-1210 lt/dk

Working pressure 7-8 bar

Engine power 7,5 kw

Aggregate Hopper

4 Bins 4×30 = 120 m³

Bunker Grid

Aggregate Weighing Belt

Width 1000 mm

Length 12360 mm

Engine Power 18,5 kw

Load Cell 4×5000 kg

Mixer Specifications

Mixer Type Twin Shaft- Single shaft

Dry Capacity 3000 lt

Mixer Capacity 2000 lt

Engine Power 2×37 kw Single

Mixer Converyor Band

Width 1000 lt

Length 28500 mm

Engine Power 30 kw

Weighbridges

Aggregate Weighbridge 6600 kg

Cement Weighbridge 1500 kg

Water Weighbridge 900 lt

Additives Weighbridge 40 kg

Cement Silo

Capacity (welded or bolted) 75-100-150-200-500 tons

Silo Quantity 1,2,3,4 adet/piece

Cement Silo and Screw Conveyor

Diameter 273 mm

Length 10000 mm

Engine Power 11 kw

Silotop Filter

Valve – Manuel Arm

Security Valve
