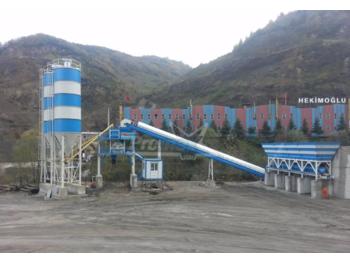

Бетонный завод PROMAXSTAR S60 Stationary Concrete Batching Plant

- Konstrollsystem- Kontrollraum  Size:2350x3000x210 mm

Material:40mm insulation panels.

Other:The filling transmitters and other areas of the plant are equipped with glass so that it is visual.They are equipped with light outlet..- Staubfilter/Staubfang

Promax S60

Plant Capacity

Compacted concrete capacity 60 m³/h

Air Compressor

Capacity (welded or bolted) 1400-1210 lt/dk

Working pressure 7-8 bar

Engine power 7,5 kw

Aggregate Hopper

4 Bins 4×20 = 80 m³

Bunker Grid

Aggregate Weighing Belt

Width 800 mm

Length 11500 mm

Engine Power 15 kw

Load Cell 4×5000 kg

Mixer Specifications

Mixer Type Panmixer-Single Shaft

Dry Capacity 2000 lt

Mixer Capacity 1000 lt

Engine Power 37 kw

Mixer Converyor Band

Width 800 mm

Length 24000 mm

Engine Power 22 kw

Weighbridges

Aggregate Weighbridge 3000 kg

Cement Weighbridge 550 kg

Water Weighbridge 400 lt

Additives Weighbridge 40 kg

Cement Silo

Capacity (welded or bolted) 75-100-150-200-500 tons

Silo Quantity 1,2,3,4 adet/piece

Cement Silo and Screw Conveyor

Diameter 219 mm

Length 7000 mm

Engine Power 11 kw

Silotop Filter

Valve – Manuel Arm

Security Valve
