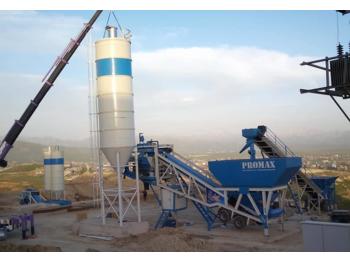

Бетонный завод Promax-Star PROMAXSTAR M100 Mobile Concrete Batching Plant

- Konstrollsystem- Kontrollraum  Size:2350x3000x2100mm

Material:40mm insulating panels.

Other:The filling transmixers and other areas of the plant are equipped with glass so that it's visual.They are equipped with light outlet.- Staubfilter/Staubfang

Promax M100

Plant Capacity

Compacted concrete capacity 100 m³/h

Air Compressor

Capacity (welded or bolted) 900 lt/dk

Working pressure 7-8 bar

Engine power 5,5 kw

Aggregate Hopper

4 Bins 4×10 = 40 m³

Bunker Grid

Mixer Specifications

Mixer Type Twin Shaft- Single shaft

Dry Capacity 3000 lt

Mixer Capacity 2000 lt

Engine Power 2×37 kw Single

Mixer Converyor Band

Width 1000 lt

Length 13000 mm

Engine Power 15 kw

Weighbridges

Aggregate Weighbridge 4200 kg

Cement Weighbridge 900 kg

Water Weighbridge 550 lt

Additives Weighbridge 40 kg

Cement Silo

Capacity (welded or bolted) 75-100-200 tons

Silo Quantity 1,2,3,4 adet/piece

Cement Silo and Screw Conveyor

Diameter 273 mm

Length 10000 mm

Engine Power 11 kw

Silotop Filter

Valve – Manuel Arm

Security Valve
