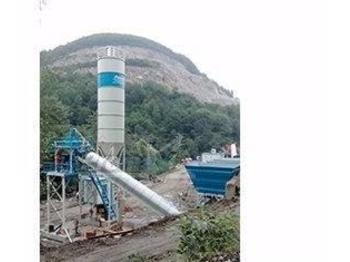

Бетонный завод Promax-Star PROMAXSTAR C60 Compact Concrete Baching Plant

• - Kontrollraum
• Size:2350x3000x210 mm Material:40mm insulation panels. Other:The filling transmitters and other areas of the plant are equipped with glass so that it is visual.They are equipped with light outlet..

Promax C60

Plant Capacity

Compacted concrete capacity 60 m³/h

Air Compressor

Capacity (welded or bolted) 900 lt/dk

Working pressure 7-8 bar

Engine power 5,5 kw

Aggregate Hopper

4 Bins 3×20 m³ = 60 m³

Aggregate Weighing Belt

Width 800 mm

Length 4200 mm

Engine Power 7,5 kw

Mixer Specifications

Mixer Type Panmixer - Single Shaft

Dry Capacity 1300 lt

Mixer Capacity 1000 lt

Engine Power 15 kw

Weighbridges

Aggregate Weighbridge 2000 kg

Cement Weighbridge 530 kg

Water Weighbridge 300 lt

Additives Weighbridge 40 kg

Cement Silo

Capacity (welded or bolted) 75-100-200 tons

Silo Quantity 1,2,3,4 adet/piece

Cement Silo and Screw Conveyor

Diameter 219 mm

Length 8000 mm

Engine Power 7,5 kw
