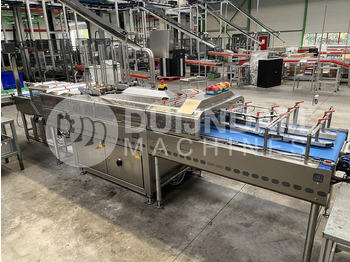

Упаковочное оборудование Jasa PGS 2000

JASA Sleever for trays and cups with pre-folded and pre-glued sleeves. Very short changeover times combined with faster processing speeds.

The JASA sleever personalizes a tray by applying a pre-folded, pre-glued sleeve around it. This can be a tray and/or a cup with a lid, a topseal or a flowpack or in some applications just the fresh fruit or vegetables. As long as the packaging is rigid enough, the trays can be made of many materials; plastic, aluminium, cardboard, foam, etc. The sleeve can be closed on two or three sides and positioned over the entire length of the tray.

Application examples:

• Apples on trays
• Meal salad trays with topseal
• Meal salad trays with lid
• Round topsealed trays for tapas
• Flowpacked fresh produce for meals and soups

Specifications of this JASA sleever:

• Jasa PGS 2000 double lane sleever for pre glued cardboard
• Jasa SDM 2000 safety dividing module to divide the trays from one lane to two lanes
• Jasa SOM 2000 safety outfeed module to go from two lanes back to one lane
• Jasa SLM 1000 label applicator to connect the sleeve to the tray
• Markem Imaje SmartDate X40 printer
• Jasa HUB 3 trolley for 3 cardboard dispencers cassettes
• With adjustable Flex cassettes
• Cassette weight: 15 kg
• Changeover time: 7-10 minutes
• Capacity: max. 100 per minute (with apples 60-80 trays / minute)
• Required air pressure: 6 bar

The JASA sleever has been developed by going back to basics: how to combine easy operation and short changeover times? How to get as many production hours as possible from the sleever at the end of the day? After evaluating several concepts it became clear that changing from one sleeve to another had to be just “changing the sleeve”, nothing else. This has been achieved by making the sleever cassette the heart of the machine. Every sleeve has its own – custom made - cassette. While changing the cassette, the width of the tray guiding system is automatically adjusted through the auto tracking system. Within 10 minutes the entire machine is changed from one set of trays and sleeves to another.

The machine is easy to integrate into an existing production line due to its very compact design. Depending on the set-up, various modular de-nesters, filling stations, lid placers and in- and outfeed-units are available. Other machines can easily be linked to the sleever and offer, amongst others, the possibility to distribute trays from a packaging machine with a single lane outfeed into a double lane sleever.

Flex Cassette

The Flex-Cassette is the ultimate solution for “Sleeving” a wide range of products, like apples, tomatoes, and kiwis. Despite the variety in shapes and sizes of these products, there is no need to use more than one or change the cassette. How many apples do you want to pack per tray, four, six, or eight? Whatever the amount, it is all possible with just one flex-cassette. With a changeover time of mere minutes, the Flex-Cassette makes packing with paper flexible.

This current flex cassette is suitable (only) for the trays / sleeves it has been running with now. That can be used for trays and sleeves for 4, 6 or 8 apples can all be made with the same cassette.

Video

Condition: Professionally dismantled after testing that the machine is in good working condition. Will be sold without overhaul.

Reason for sale: closure of production site
