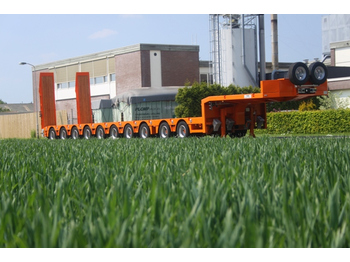

Низкорамный полуприцеп для транспортировки тяжёлой техники TSR 10(8+2).SOU-7N

NEW - Type 10(8+2).SOU-7N

10(8+2)-axle semi-lowloader, single extendible, 7 axles selftracking

Dimensions

- Total length : 18.345 mm

- Extendible length : 8.300 mm

- Length of lowbed : 14.335 mm

- Height of lowbed : 930 mm

- Axle distance : 1.310 mm

- Total width : 2.550 mm

Weights

- Coupling : 35.000 kg

- Axles : 120.000 kg

- Total weight : 155.000 kg

- Own weight : 25.000 kg

- Loading capacity : 130.000 kg

Description

- Single extendible (+ 8.300 mm in stages of 500mm)

- Chamfered rear incl. connections for alu. ramps

- 9 Straight timberstake-pockets in siderave

- Lashingrings (5 ton): 9pcs. per side in lowbed, 2pcs. per side on neck

- 4pcs. Holders for wideninglights

- Holder for hazardlight

- 10x 12 ton GIGANT axles (technical 12 ton)

- 2 axles mounted under the fixed part behinf the neck

- Last 4 axles selftracking

- First 3 axles frontsteering

- Airsuspension

- Liftaxle on 1st axle, 2nd and 3th axle

- Drumbrakes

- Raise and lower valve

- Brakesystem according to EG with ABS-EBS

- 40 Tyres and wheels 235/75R17.5

- Raise and lower valve

- Kingpin SAE 2"

- Landinglegs front, mechanical, 24 ton

- Headboard as Toolbox

- Widening of the lowbed untill 3 meters with slideble outriggers (galvanized)

- Sparewheel carrier mounted in front incl. 1pcs. sparewheel 235/75R17.5

- Available WITH or WITHOUT hydraulic ramps at you choice (in 3m ramps or 5m

ramps)

- More options can be delivered on request.

- Several colors available in RAL

Available on order, with your own requirements and options on short delivery therms. Contact us for more information or a custom made offer.

More information: info@tsrtrailers.com

Visit our website for our full product range : www.tsrtrailers.com

Follow us on Facebook: www.facebook.com/TSRTrailers

And check us out on YouTube: www.youtube.com/TSRSpecialTrailers

TSR Special Trailers designs and manufactures bespoke engineered trailers and solutions to meet the Customers wishes and technical requirements; from standard and relatively simple low loader designs, up to complicated and multi-functional applications.

TSR specializes in the production of hydraulic steered and self-tracking steered semi-low loaders and flatbed trailers, however our product range extends far beyond this.

We have always several models, from 3 till 8 axle trailers, available on stock or on short delivery therms. All models can be adapt to your own requirements.

If you are interested in receiving further information on TSR or indeed you have a specific requirement and would like to receive a free quotation, please do not hesitate to contact us.

To be at you service,

TSR Trading B.V. - The Netherlands
