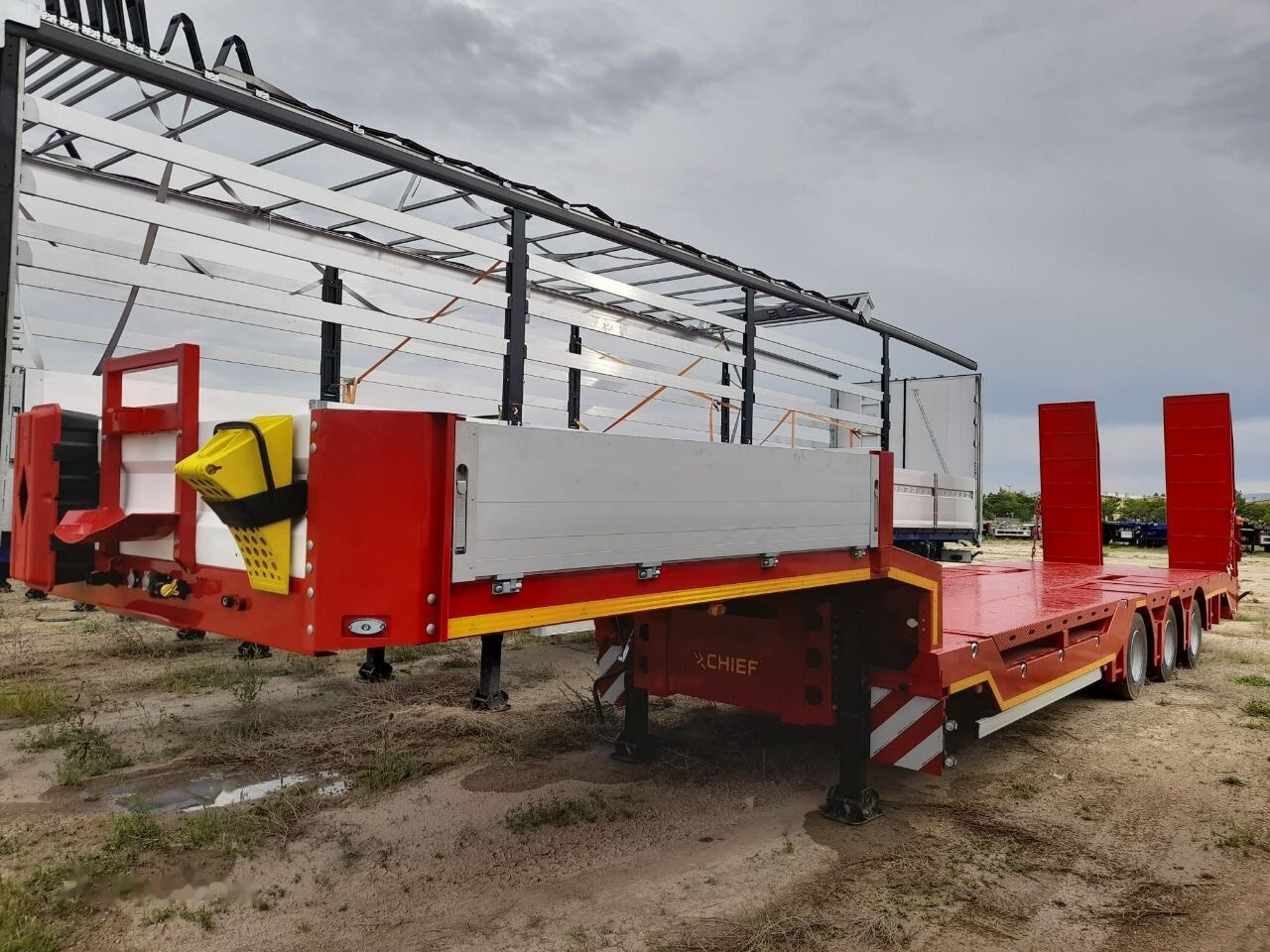

Новый Низкорамный полуприцеп Reis Treyler Low-Bed Trailer

3 AXLES LOWBED SEMI-TRAILER TECHNICAL SPECIFICATIONS

Fifth Wheel: Height, 1250 mm

Loading Platform Height: 930 mm (Loaded), 943 mm (Unloaded)

Overall Length: 13881 mm

Over All Width: 2540 mm

Loading Platform Length: 8.452 mm with tire pool of, 3022

Gooseneck Length: 3800 mm

Rear Overhang: 2682 mm

Axle Group Capacity: 33000 kg

King Pin Capacity: 18000 kg

Total GCW (Capacity): 51000 kg

Tire Estimate Weight: 9500 kg

Payload: 41500 kg

Chassis Construction:

REİS chassis suitable for 98/91 EEC standards made from high graded steel with “I” profile shape, produced with atomized submerged arc welding system.

Brake System:

Brake system suitable for 71/320 EC and 2002/78 EC standards. Automatic load sense valve RSS (corner stabilizer).

Axle: BPW Brand 3 x 12-ton capacity, air suspension

Tires & Rims: 12 PCS tire with size275 70R 17,5

Landing Gears: SAF Brand, 24 ton carrying capacity, double speed mechanical landing gear.

Rear Loading Ramp:

Sliding Hydraulic Ramp, ramp overall dimension: 3130 mm, (Optional) with 750 mm flip able edge

Base Plate:

Steel removable type of fittings that is adjusted for high profile made from galvanized steel design to fulfill the pool built to the chassis.

Water Tank: 40-liter stainless steel water tank.

Tool Box: 2 PCS with dimensions 1500*500*400 mm

Lashing Hooks and Lashing Points: 2*11 load lashing hook suitable for safe cargo transport.

Widening Brackets: N/A in case of requirement can be added in the project

Gooseneck Side Cover: N/A optional can be made according to demand

Distance Between Axles: 1320 mm

Electrical System:

Electrical system suitable for 76/756/EEC, 2007/35 EC and ADR standards. 2 x 7

pole plugs, 1 x 15 pole plug suitable for all type truck tractors LED system. Front and

side warning lights.

Side Protective Bars: Impact-resistant side bicycle protective bar suitable for 70/156 EEC standards
