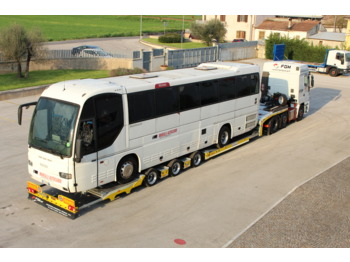

Semitrailer breakdown service – 3 axles extendable up to 17 meters

MODEL: FGM 33 L 135 3A (central frame)

Areas of use: road assistance, track-guided vehicles (trams, locomotives, buses)

• N.3 axles with pneumatic suspensions

• 2nd & 3rd axle self-steering

• Extendable loading platform between gooseneck to 1st axle for 3,000 mm.

• Gross weight 32,400 kg (4x2 Truck) 38,000 kg (6x2 truck) – Pay load 20,400 kg (4X2 Truck) 25,400 kg (6x2 Truck), Tare Weight 12,000 kg.

• Total length from 13.785 mm to 16.785 mm.

• Low floor length (gooseneck to rear ramps) from 10.030 mm to 13.030 mm

• Width 2.550mm.

• Height of charge zone between gooseneck to 1st axle 250 mm

• N. 4 wheel troughs placed between axles chequer plate with steel hatches.

• N.1 hydraulic pull winch 8 ton towing force placed on gooseneck with remote

• Surface treatment: hot dipped galvanized

• Braking system EBS 4S/2K

• Rear telescopic ramps with hydraulic movements and double extension 2000 x700 mm

• N. 12 tires 205/65 r 17.5 - Steel wheels

• N.2 tool boxes on gooseneck

• Warranty program 2 years

Note: those listed are the standard components of this trailer to find out more accessories please press the button “Configure this product” and select the options that best satisfy your needs.
