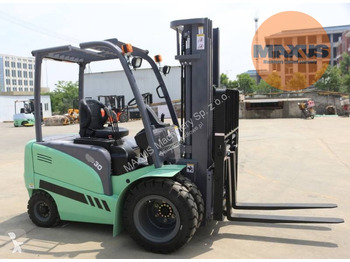

Новый Электропогрузчик maxus Electric Forklift 3000 kg

TECHNICAL SPECIFICATION OF THE FORKLIFT MAXUS 30

General description

Engine type: Electric

Control: From the operator's seat

Lift capacity (kg): 3000

Load center (c) (mm): 500

Distance from drive axle to fork front (x) (mm): 475

Wheelbase (y) (mm): 1625

Own weight (kg): 5050

Axle load – with load – front/rear (kg): 7160/890

Axle load – without load – front/rear (kg): 2424/2626

Tires

Tire type: Pneumatic

Tire size, front: 23x9-10

Tire size, rear: 18x7-8

Wheels, number of front wheels (x=drive wheels): 2x/2

Front wheel track (b10) (mm): 1058

Rear wheel track (b11) (mm): 960

Mast tilt/carrage front/rear (degrees): 5/10

Lowered mast height (h1) (mm): 2186

Free lift (h2) (mm): 145

Lifting height (h3) (mm): 3000

Extended mast height (h4) (mm): 4152

Standard protective roof height (h6) (mm): 2110

Optional protective roof height (h6) (mm): 2190

Operator seat/platform height (h7) (mm): 1070

Hook height (h10) (mm): 303

Dimensions

Overall length (l1) (mm): 3572

Length to the tip of the forks (l2) (mm): 2502

Overall width (b1) (mm): 1265

Fork dimensions (s/e/l) (mm): 45/125/1070

DIN carriage 15 173 --- ISO 2328, class/type ISO2328 2A

Carriage width (b3) (mm): 1200

Fork spread (b5) (mm): 290/1100

Clearances

Clearance below mast (m1) (mm): 115

Clearance at wheelbase center (m2) (mm): 125

Working aisle width for 1000x1200 pallets (Ast) (mm): 3905

Working aisle width for 800x1200 pallets (Ast) (mm): 4105

Turning radius (Wa) (mm): 2230

Inner turning radius (b13) (mm): 730

Speed and Performance

Travel speed with load/without load (km/h): 14/14

Lifting speed with load/without load (mm/s): 250/400

Lowering speed with load/without load (mm/s): 260/390

Towing force with load/without load (N): 20000/21000

Maximum towing force with load/without load (N): 22000

Climbing ability with load/without load (%): 11/12

Maximum climbing ability with load/without load (%): 13/14

Acceleration with load/without load (0-10m) (s): 5.3/5

Brakes

Hydraulic brakes

Mechanical handbrake

Motor power

Drive motor S2 60 min (kW): 15 AC

Lifting motor power at S3 15% (kW): 10 DC

Battery

According to DIN43 531/35/36: No

Voltage of traction battery (V/Ah): 80/500

Battery weight (kg): 1530

Battery dimensions (l/w/h) (mm): 1028x710x780

Energy consumption for VDI cycle (kWh/h): 6.5

Minimum battery weight (kg): 1200

Maximum battery weight (kg): 1550

Additional equipment

Working pressure for additional equipment (bar): 175

Oil flow for additional equipment (l/min): 65

Noise level (dB(A)): 74

Hitch diameter (Φ): 24

Hydraulic tank capacity (l): 24
