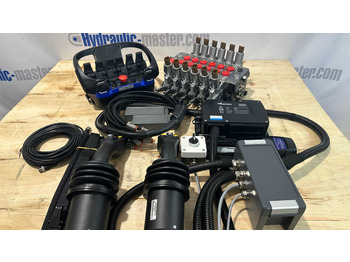

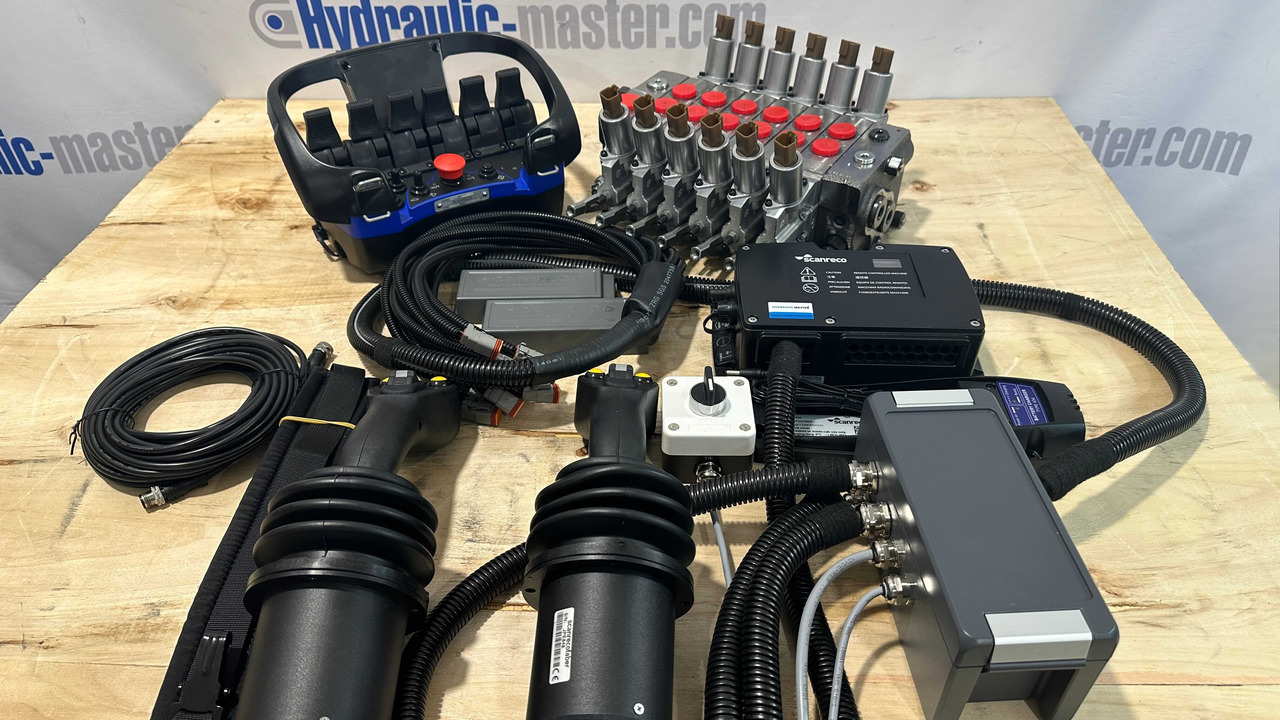

Лесозаготовительная техника Proportional Valve Walvoil DPX100 with Control Scanreco RC400 and JP Joysticks PWM for Palfinger, Kubota, Kesla

Hydraulic Valve Walvoil DPX 100 12/24V with 6 Proportional Sections, Open/Closed Center and Additional Levers. The valve includes a post-compensation section.

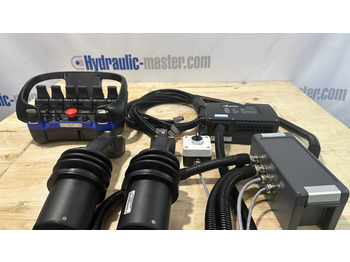

Scanreco G2B Mini 6 pads 12/24V and with 2 JP joysticks.

You can switch in real time between radio control and joysticks according to your needs and operating convenience at any time!

This kit is configured for the most popular machine settings, supporting up to 6 standard crane functions. If you require a different dedicated configuration, we can customize it to meet your needs, including variations in spools, voltage, the number of sections, anti-shock valves, connectors, etc.

The kit is designed for plug-and-play convenience. We handle everything from the plugs to the software configuration.

We provide technical support and are readily available via email, whatsup and telephone.

Feel free to contact us at shop@hydraulic-master.com or damian@hydraulic-master.com for any inquiries or assistance.

After placing an order, the flow and pressure can be fully adapted to the machine according to the customer's specific requirements.

Hydraulic, sectional valve Walvoil DPX 100 with compensation, full proportional

Technical specifications of default configuration:

Inlet section: 32GPM 120l/min - Pmax 300 bar 4351psi Power supply port: 3/4" BPS, tank return port: 3/4" BPS

1st Slewing - Horizontal movement of the crane 40 L/min 10GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

2nd Main lift 80 L/min 21GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

3rd Jib - Horizontal bean extending from the crane 40 L/min 10GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

4th Extension 60 L/min 16GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

5th Grab open/close 20 L/min 5GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

6th Rotator 20 L/min 5GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

Outlet section: with the possibility of combining valves, with bleed valve (LS relief), with pressure reducing valve. Control connection "V" and drainage connection "L" closed. Side connections "T1", "P1", "LS1" closed. DBV fixed and sealed to 175 bar at 90L/min.

Scanreco G2B Mini with 6 levers

- 1-6 linear levers

- Stop function according to EN ISO 13849-1 Cat. 3, PL e

- Various toggle switches, buttons and rotary switches

- Frequency bands: 433-434 or 902-928MHz (other frequencies available on request)

- Operating range > 100 m / > ~330 ft.

- Degree of protection: IP65

- Operating temperature: -20°C to +70°C / ~-4°F to +160°F

- Cable control: standard length 10 meters / ~33 ft.

- G2B Receiver Danfoss 12 or 24 VDC power supply

- Choice of radio or cable control

- 8 bi-directional voltage regulated outputs for Danfoss PVG-32 valves

- All analog outputs are programmable for final setting of speeds

- - 14 digital outputs (where 1 is combined input/output) and 4 digital inputs (where 1 is combined input/output)

- A DV output to control the dump valve

- Radio communication in the ISM band using frequency hopping technology

- Manual mode available to bypass the radio system, providing only the DV output and allowing manual control via the hydraulic manifold (where available).

- Programmable logic with block, soak, decelerate, ramp functions and much more

- Please note that cable sets or connection plug sets are NOT included in the scope of delivery and must be ordered separately if required.

- Dimensions: (W x H x D): 350 x 160 x 190 mm / ~13.78 x 6.30 x 7.48 inches (without color display)
