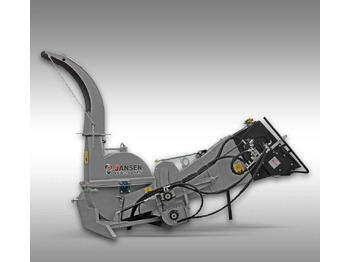

Jansen BX-92RS

is the bigger brother of the BX-62RS model. Working with this device is a real pleasure thanks to the hydraulic feeding system. In this model, passing, pushing, etc. are a thing of the past; 2 large feed rollers take care of this themselves. The speed of the feed rollers can be adjusted continuously. This is important so that the feeding speed can be adjusted to the diameter of the material being shredded. Smaller diameter material can be fed faster than larger diameter material. If the feeder gets blocked, it can be reversed using the large handle on the feed hopper. In addition, the feed can be turned off using this handle.

The unit is powered by the tractor's hydraulic system; a pressurized feed line and a non-pressurized return line are required, or alternatively a double acting controller is required. There are similar versions of this chopper, some of them offered at lower prices, that do not have this reinforcement. This can lead to bending of the feed rollers and damage to the bearings as they are only mounted on one side; the other side of the feed rollers hangs freely. Some competitors also advertise their shredders as BX-92, although they refer to different types. Please check competing offers carefully. The chipper is delivered complete with PTO. A shear pin is built into one side of the PTO as a safety precaution, as it serves as a predetermined break point in the event of a jam or overload. This means that even larger tractors with power over 100 HP can be used without problem. The engine power should be at least 50 HP.

The rotational speed of the unit injector must be 540 rpm. The hopper has an opening of 63.5 x 63.5 cm; the opening in the lower part measures 25.5 x 38 cm. Cuttings with a maximum diameter of 25.5 cm can be shredded. Many competitors list the maximum chopping diameter as a measurement of the bottom of the hopper, but this value is unrealistic and may trigger a safety mechanism in the PTO. Softwood up to 38 cm wide can be chipped, although such diameters are usually processed into firewood rather than wood chips. The BX-92RS has a very solid finish! The strength of the sheet material in the load-bearing area is 10 and 12 mm. In the case of the hopper and non-load-bearing parts, it is from 4 to 6 mm. Compare our devices with competing products! You won't find anything comparable. The tank can be easily folded up for transport and secured with a pin. To facilitate folding upwards, the chipper has 2 shock absorbers.

The design of the device is very easy to maintain; the flywheel cover can be opened completely by unscrewing just one screw, giving access to the 4 cutting blades. The cutting blades are double-sided, so they can be rotated when necessary. The flywheel has a net mass of 125 kg and is equipped with wings that create extremely strong suction that ultimately ejects the chips from the chute. Thanks to such strong suction, it is virtually impossible to block the shredding unit. The chute is 220 cm high (plus the height of the lower connector) and can be rotated 360 degrees. On request, we can also supply a 50 cm chute extension. This allows you to easily direct the chips onto a tractor trailer or directly into Big Bags. You can also change the throwing angle. The BX-92RS model can throw wood chips up to 10 m. The shredder is designed to be mounted on a 3-point suspension system and can be used from Cat. AND.

ATTENTION

: The unit is shipped well packed and partially assembled in a steel box. Approximately 1 hour should be allocated for final assembly. Step-by-step assembly instructions and several detailed diagrams are part of the manual included attached to the chipper.
