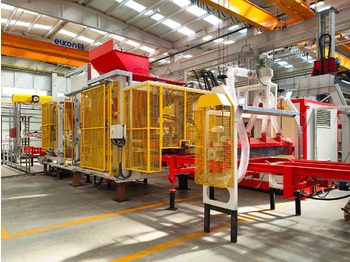

ELKOBLOCK-S25 Concrete Block Machine & Handling Equipments

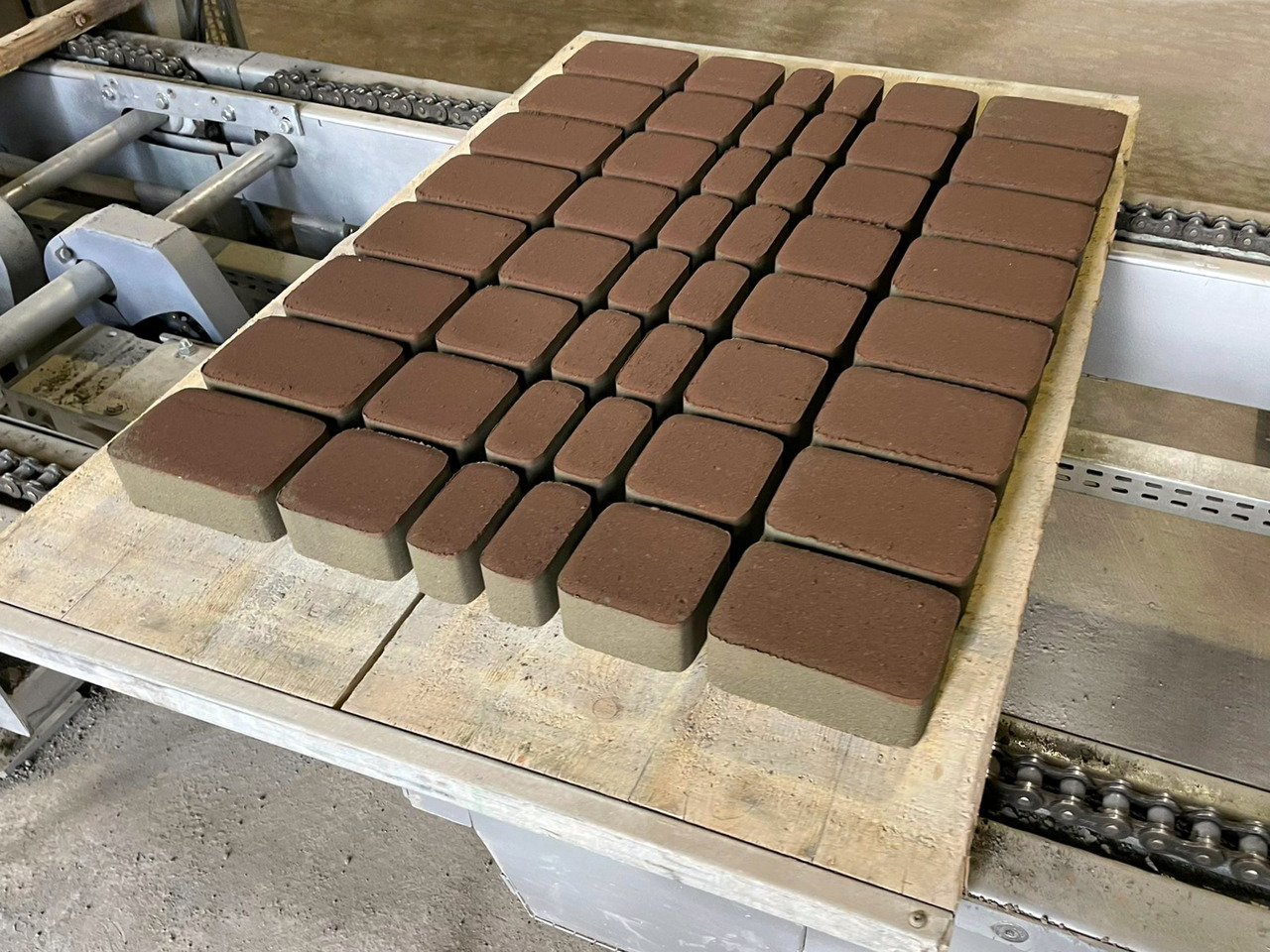

Capacity (10 hours production): ~800 m² concrete paver or 12.000 pcs 20x40x20 cm hollow block

- For production of blocks from 60 mm to 300 mm

- Forming area: 1035x860 mm

- Pallet size: 1200x950 mm

HYDRAULICS

- High performance multi circuit hydraulic system provides highest production capacity and efficient operation of machine

- Brand: REXROTH (GERMANY)

- Hydraulic system is located in a separate cabin.

- 40 l/min capacity oil cooler with fan

- Maximum working pressure 180 bar

- Proportional valve controls for changing production speed depending on product

VIBRATION

- Tamper head vibration motors: 2,1 kW x 2 units, Brand: OLI WAM

- Vibrating table vibration motors: 4 kW x 2 units, Brand: ELKON

DESIGN

- Heavy duty design, robust machine structure and certified high grade steels used in production ensures highest durability and longest life time

- Four columns with chrome-plated guides for tamper head

- Special steel used in important places ensures optimum performance for many years.

- Quick mold changing

- Exchangeable wear plates

- Exchangeable joint bushes

- 1500 liters concrete hopper for backing and 1250 liters concrete hopper for hard face concrete with hydraulic discharge control

- Shifting feeding grid inside backing concrete feed drawer for high speed feeding

- Min.-max. level indicator on concrete hoppers

- Automated height adjustment for feed drawer

- Fully comply with CE safety regulations

- Safety guards around all required points

CONTROL SYSTEM & POWER BOARD

- Operator cabin with air condition

- Fully automatic control from user friendly automation system which includes 15” SIEMENS TP 1500 touch panel, SIEMENS S7-300 PLC

- Easy control of production parameters and flexibility on production

- All electrical components inside power board are SIEMENS-GERMANY brand.

Empty Pallet feeding hopper and conveyor

Empty Pallet Feeding Robot

Empty Pallet Cleaning Brush

Pallet Conveyor for Wet Products

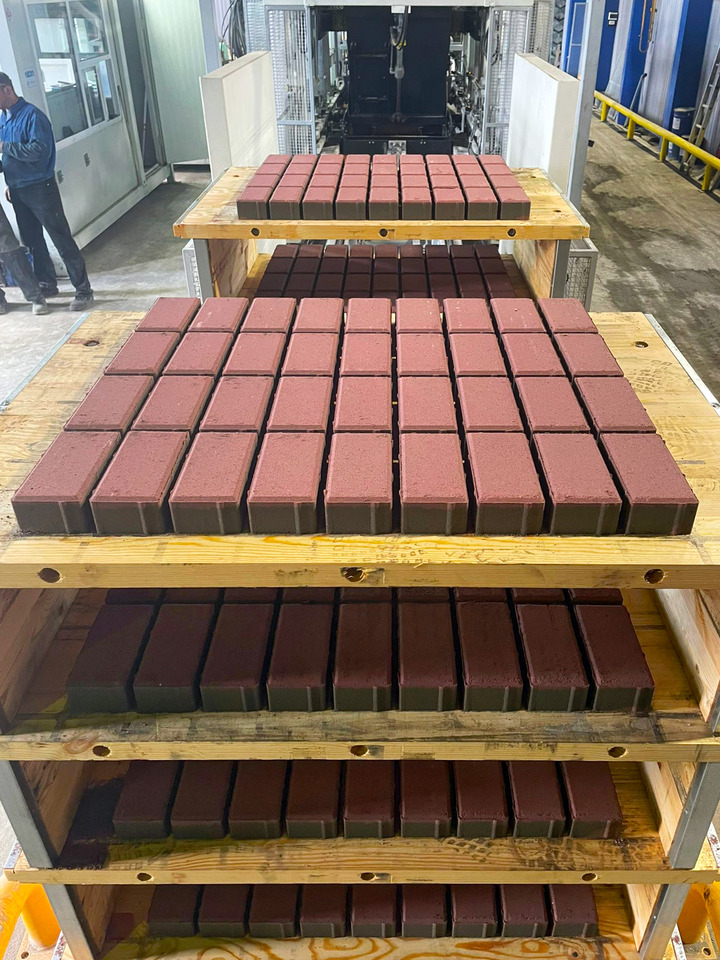

Pallet Elevator (10 levels)

Steel Cage for Pallet Handling (Sample)

Platform for 3 Steel Cages

Pallet Lowering

Depalletizing Conveyor

Product Cleaning Brush

Automatic ELKON Cubic Robot (Servo-Drive)

Delivery Pallet Conveyor

Automation System for Handling Equipment
