SID BETONMISCHER ARKAN / Bucket Concrete Mixer 800 MM, 0,15 M3 в лизинг

Bucket Concrete Mixer / Betonmischer / Godet malaxeur à béton / Míchačka na beton / Betonkeverő / Cupa betoniera / Benna Miscelatrice per calcestruzzo / Betono maišyklės / BETONMIXER

The concrete mixer finds applications on construction sites, during paving and renovation of sidewalks, water channels, sewage channels, and is also ideal for mixing fodder.

It is particularly recommended on construction sites with limited or no electricity. Before immediate use, the required amount can be mixed and transported to the desired location. The concrete mixer is hydraulically driven by the installation on the machine's arm.

Advantages:

• The concrete mixer bucket makes it possible to minimize the cost of concrete production practically down to the cost of raw materials: aggregate, water and cement.

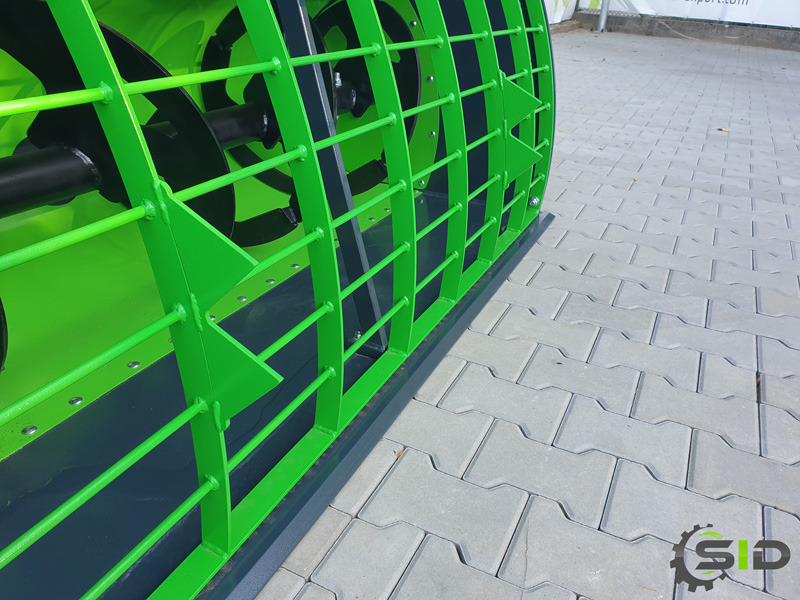

• The concrete mixer is equipped with an opening protective flap with teeth for ripping bags.

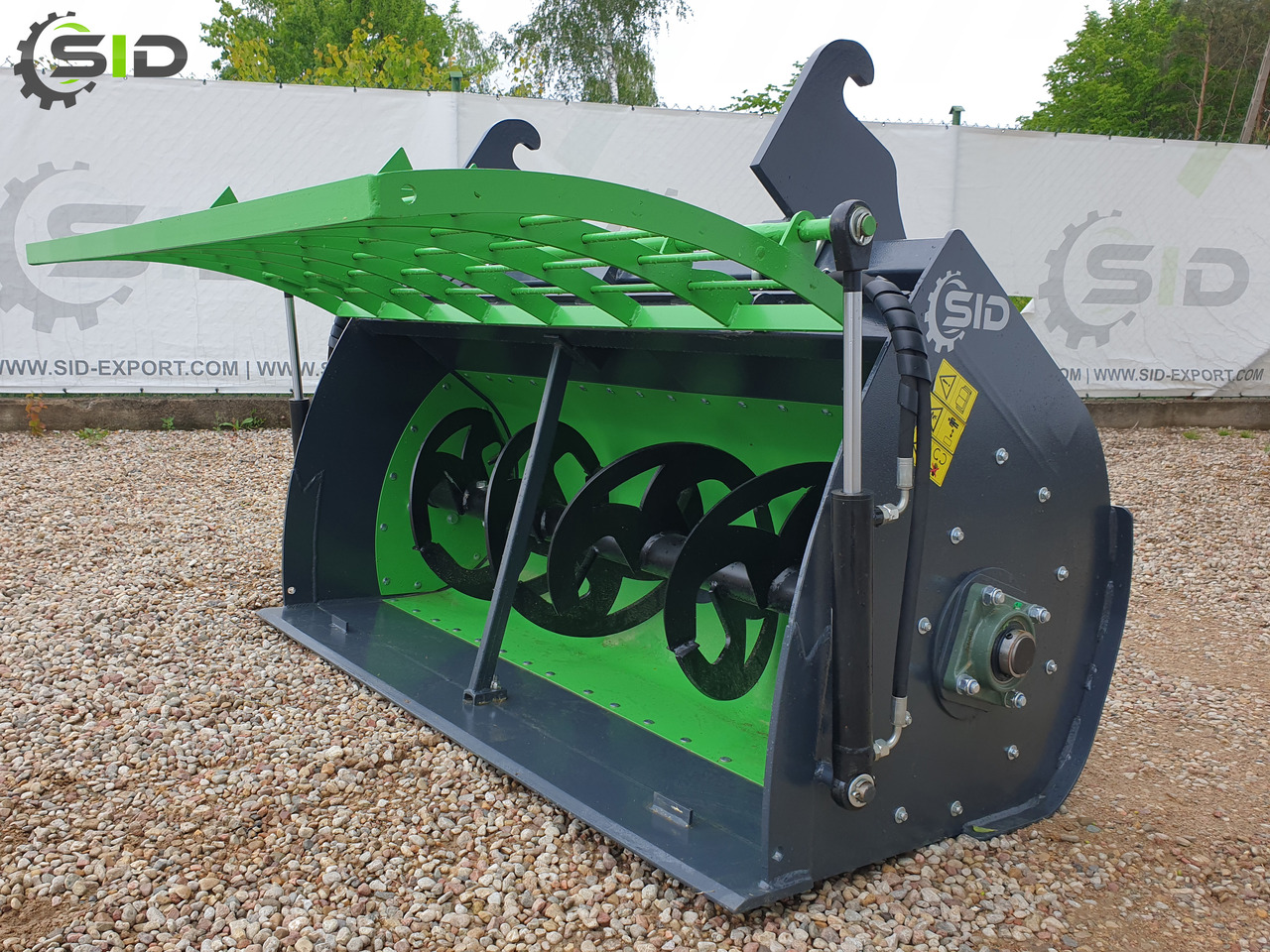

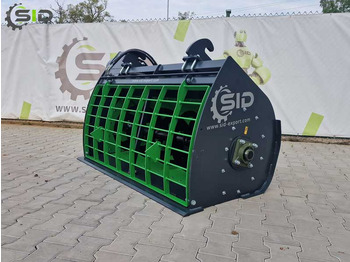

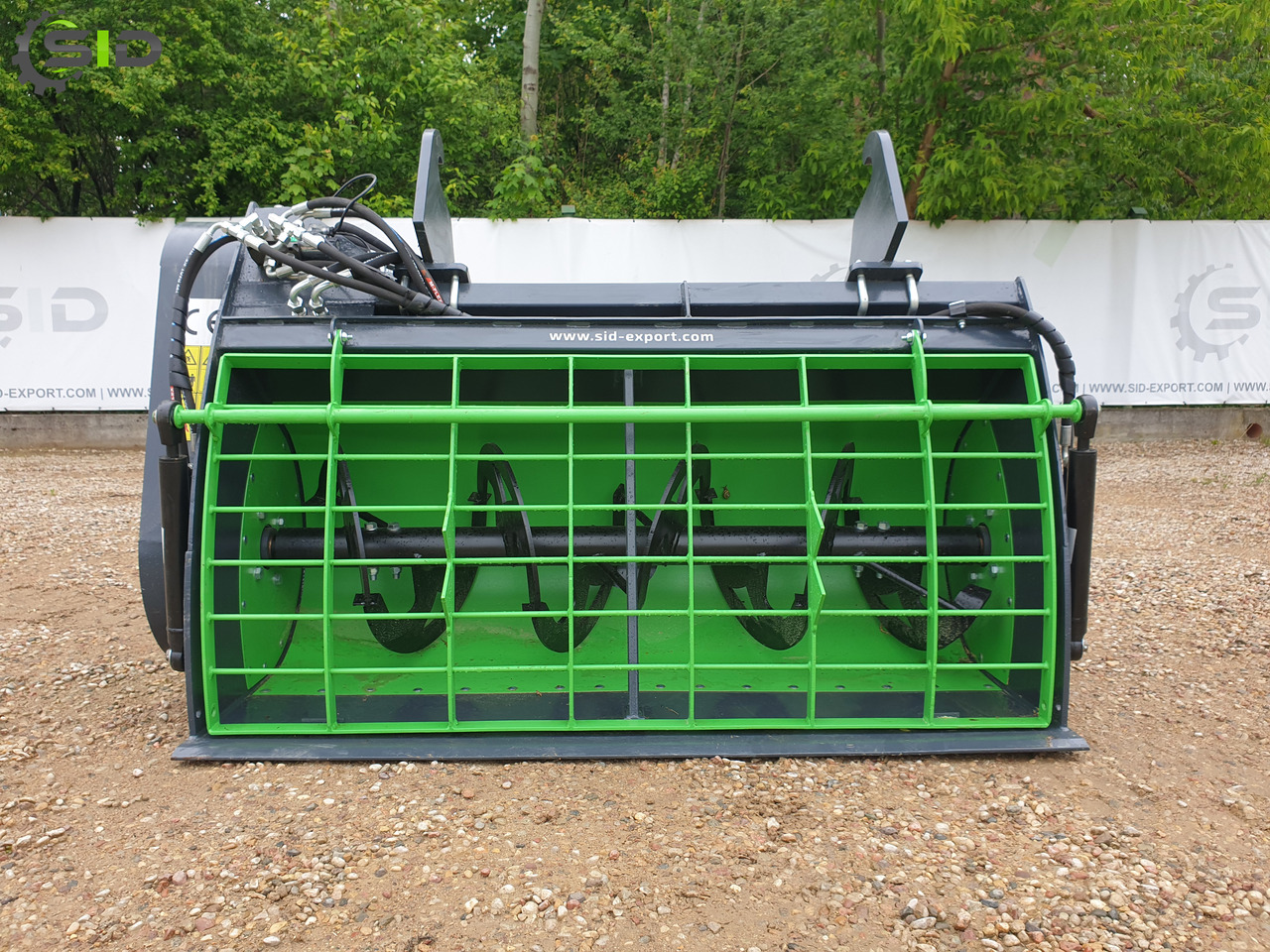

• The grate protects the mixer against stones and other dirt that could cause the rotor to be damaged or jammed.

• The bottom part of the mixer, with the blade, has been moved forward for easier collection of gravel straight from the heap.

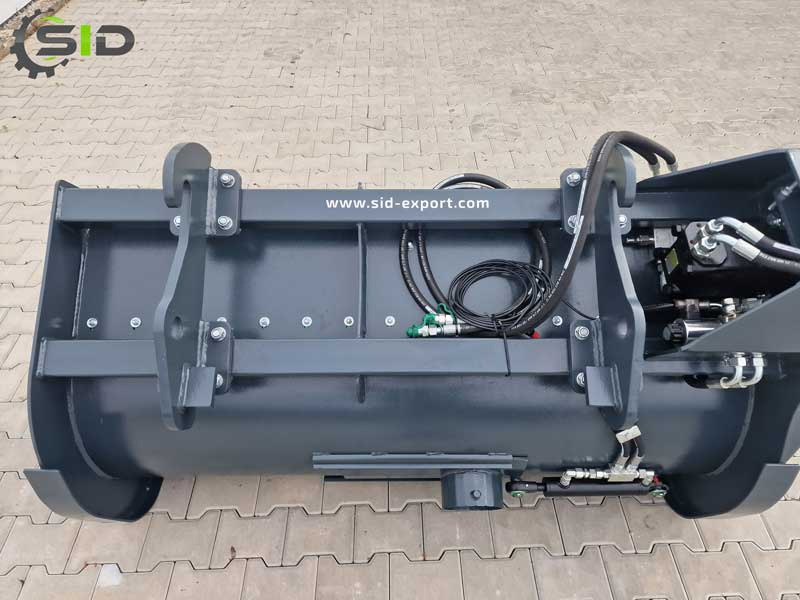

• It be mounted on mini-loaders, loaders, loader-excavators, telescopic loaders and agricultural tractors.

• Dry mixing is possible.

Description:

• Width from 0,80 m to 2.0 m.

• Capacity from 0.15 m3 to 1.0 m3

• Weight from 410 kg to 771 kg

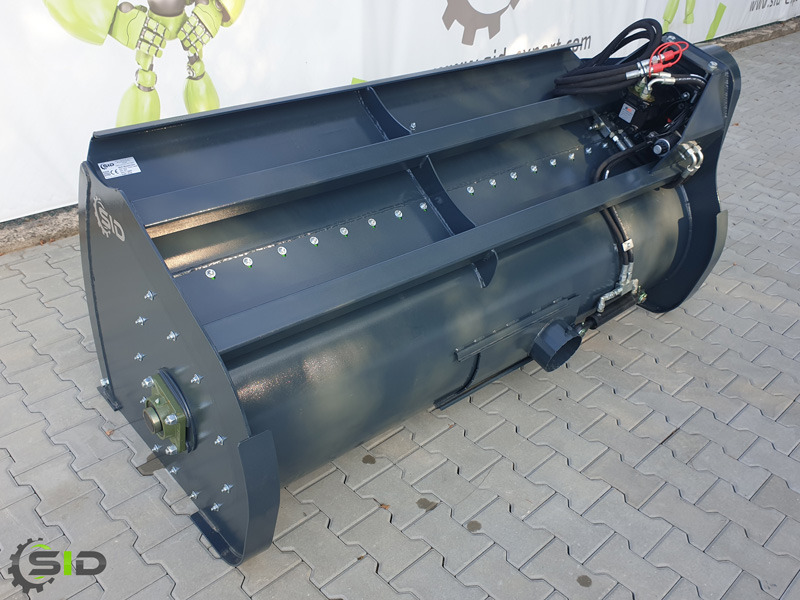

• The concrete mixer is made of S355 steel 6 mm thick with replaceable inserts 3 mm thick, fastened to the mixer’s structure at the points most exposed to abrasion.

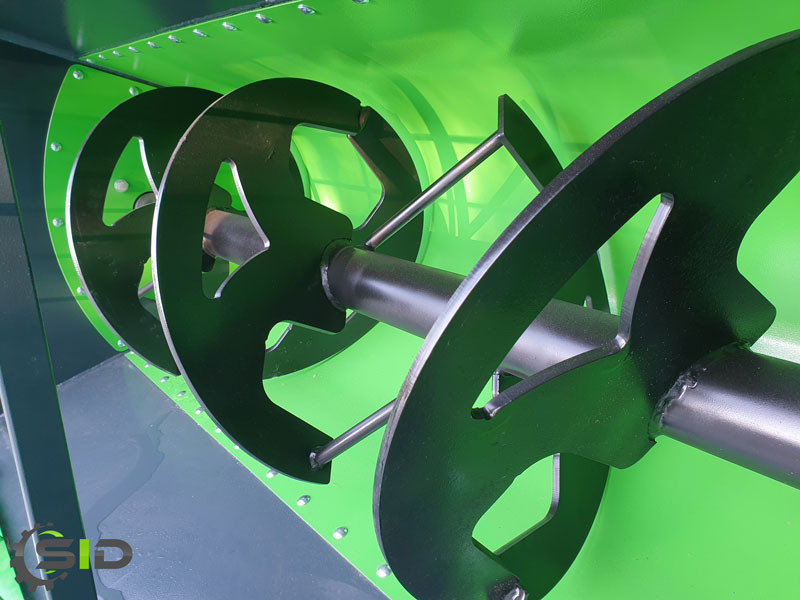

• Dia. 600 mm mixer.

• 10 mm mixer, replaceable, thread-fastened.

• Dia. 90 mm pipe, replaceable, thread-fastened.

• Additional bearing sealings.

• Wheels with hardened teeth.

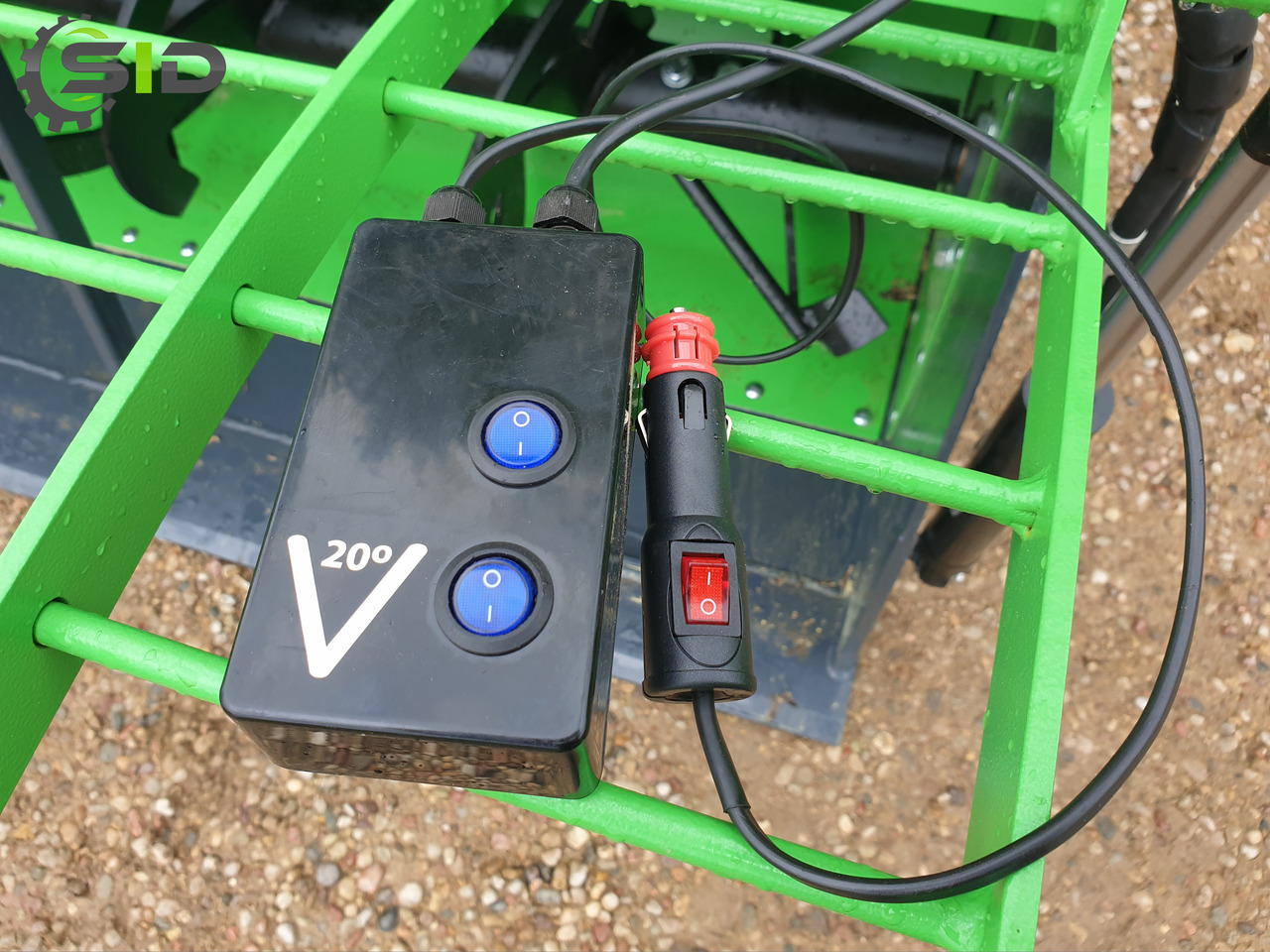

• Bottom drain opened hydraulically by solenoid valve.

• 12-month guarantee.

Width | Weight | Volume SAE | Price*

800 mm | 410 kg | 0,15 m3 | 4 015 €

1000 mm | 449 kg | 0,20 m3 | 4 165 €

1300 mm | 489 kg | 0,30 m3 | 4 310 €

1600 mm | 550 kg | 0,40 m3 | 4 430 €

1500 mm | 612 kg | 0,60 m3 | 4 790 €

1750 mm | 680 kg | 0,80 m3 | 5 200 €

2000 mm | 771 kg | 1,00 m3 | 5 665 €

Additional options:

• Hardox insert - 195 €

• Hydr. Opening Flap - 580 €

• Downspout - 145 €
