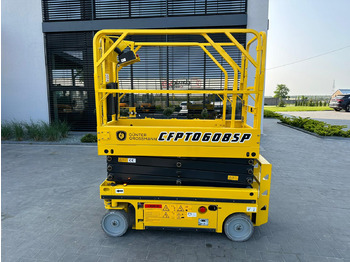

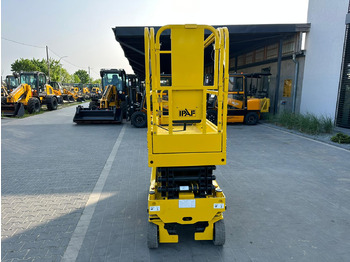

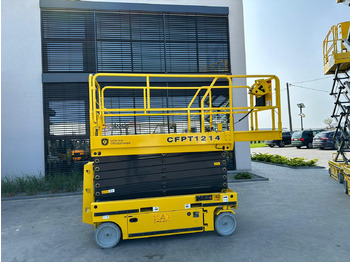

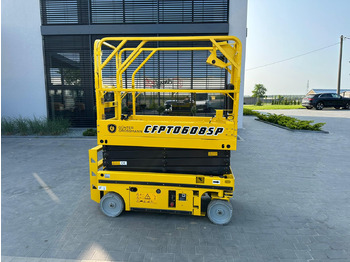

Netherlands, HACKFOIRTSTRAAT 00021 5975XN SEVENUM Netherlands THE NEW GÜNTER GROSSMANN Scissor Lifts
available in 6, 8 and 12 meter platform height
THE GÜNTER GROSSMANN Scissor Lift (230KG PAYLOAD) IS BRAND NEW.
FULLY ELECTRICALLY POWERED THEREFORE EXTREMELY DURABLE
VERY SUITABLE FOR CONSTRUCTION GARDEN AND INDOOR AND OUTDOOR WORK
GÜNTER GROSSMANN IS A HIGH-QUALITY MACHINE MADE FOR A EUROPEAN COMPANY.
THE MACHINE HAS A VERY DURABLE CONSTRUCTION AND LIKE ALL OUR MACHINES HAS BEEN LONG-TERM TESTED
Specification
Platform load capacity: 230 kg
Load capacity with extended platform: 130 kg
working height: 7.8m
max. platform height: 5.8 m
Extendable platform: 900 mm
Minimum Clearance: 86mm
Wheelbase: 1085mm
Lift motor: 24/3.3V/Kw
Battery: 4x6/200V/Ah
Battery charger: 24/25V/A
Wheels: 305*100mm
Weight: 1460 kg
MAIN DIMENSIONS
Length (L): 1860mm
Width (W): 760mm
Height (rail up): 2180 mm
Height (rest down): 1840 mm
Platform dimensions: 1670*740mm
RANGE
min. Turning radius (inner wheels): 0 mm
min. Turning radius (outer wheels): 1640 mm
Compound driving speed: 3.5 km
Travel speed (elevated): 0.8 km/h
Speed up/down: 18/22 mm/sec
Climbing ability: 25%
working slope: 1.5 - 3
