SID RÜTTELSIEB 2 FRAKTIONEN SIEBANLAGE / Vibrating Screen в лизинг

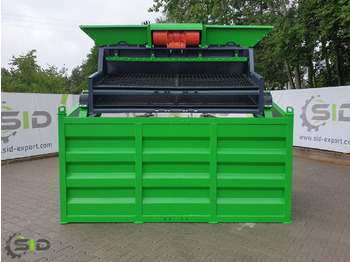

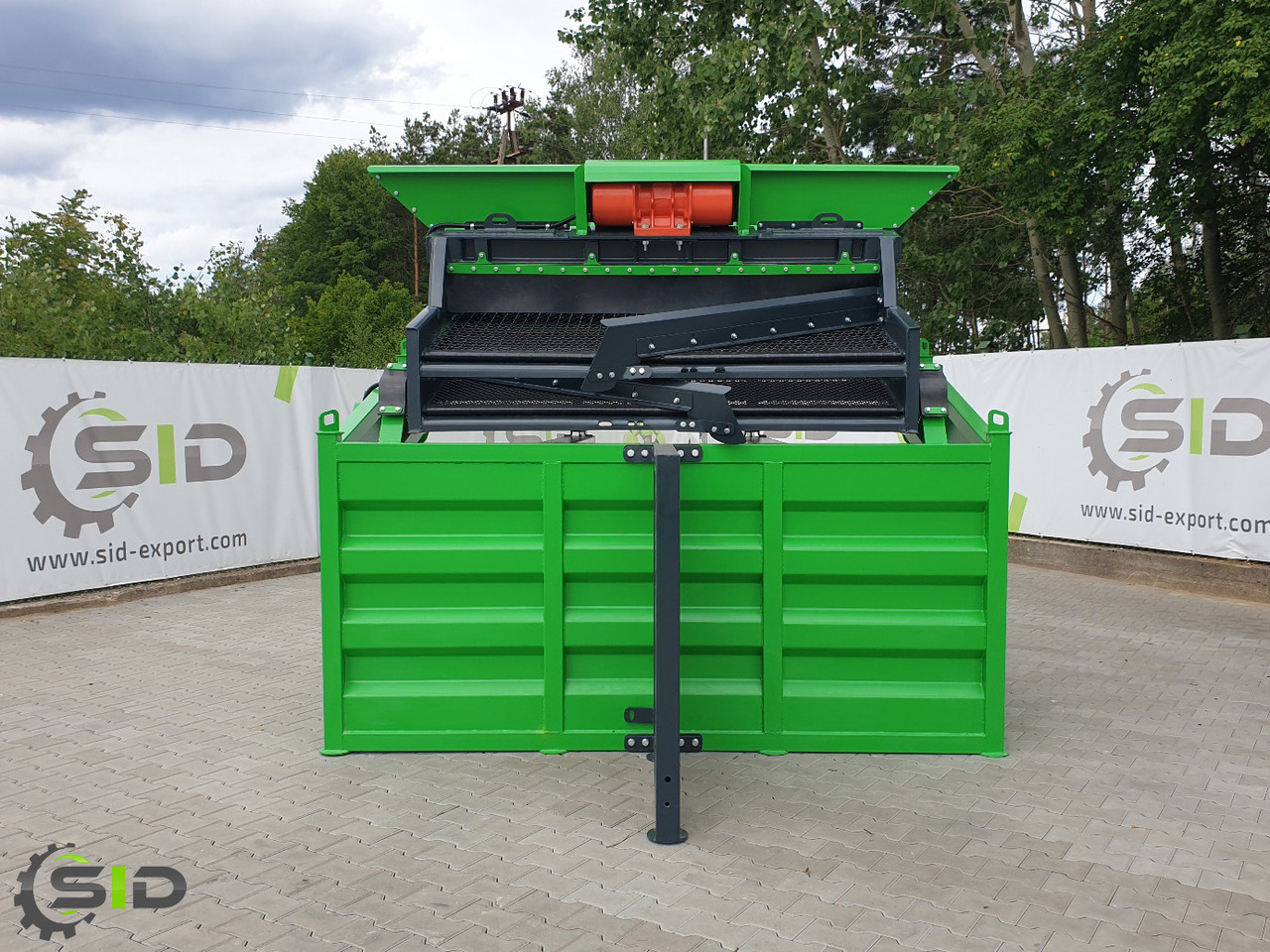

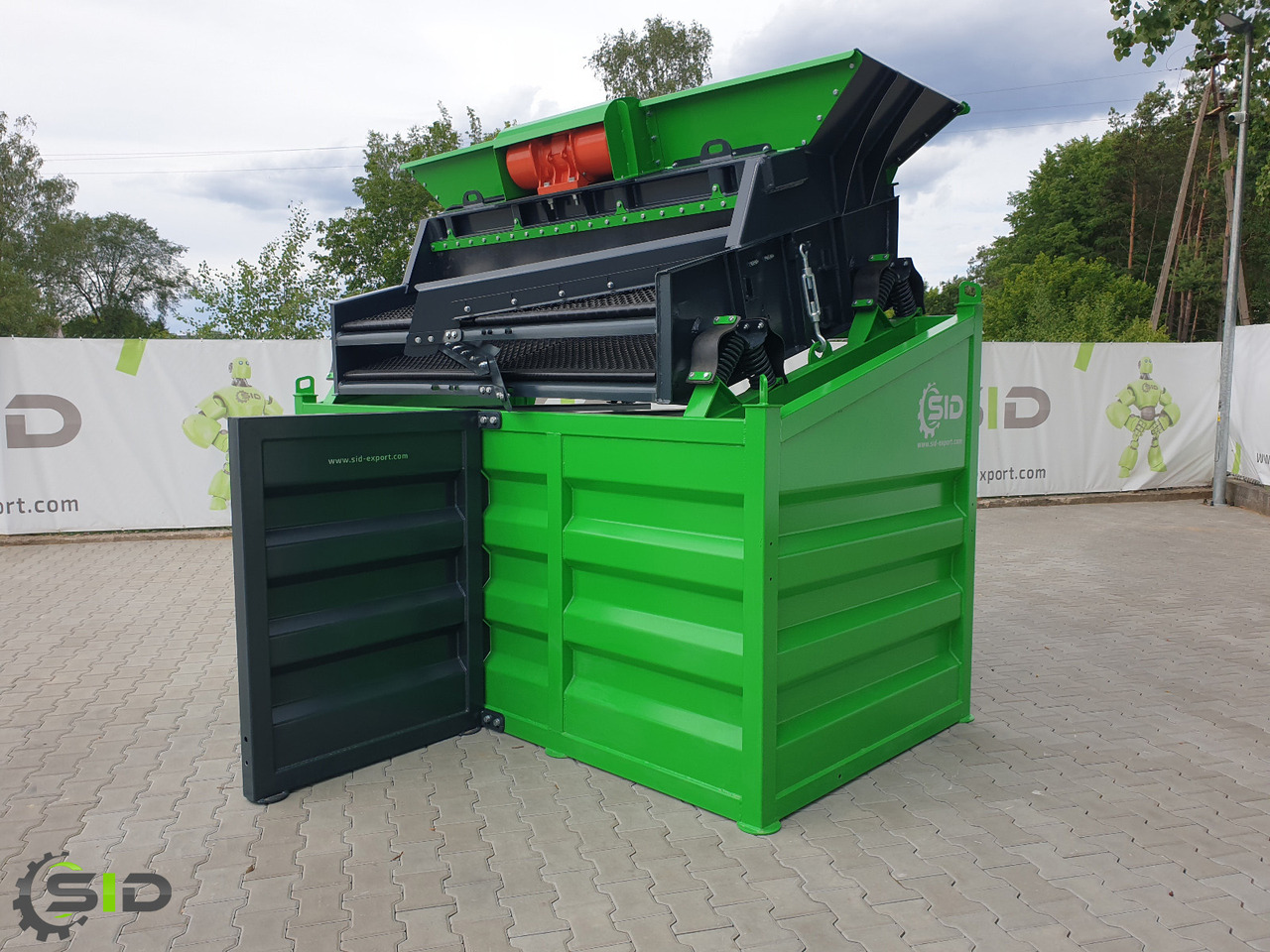

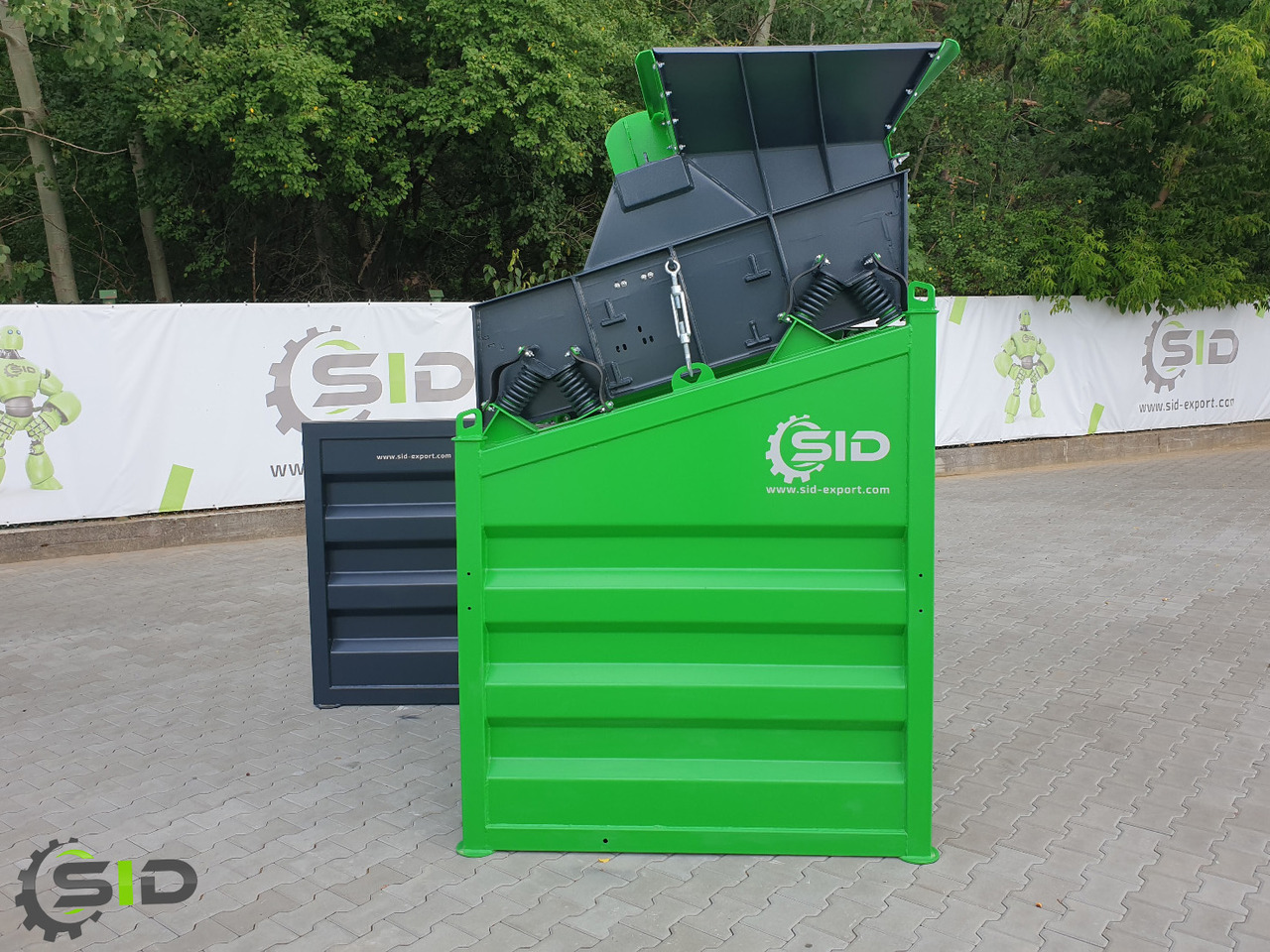

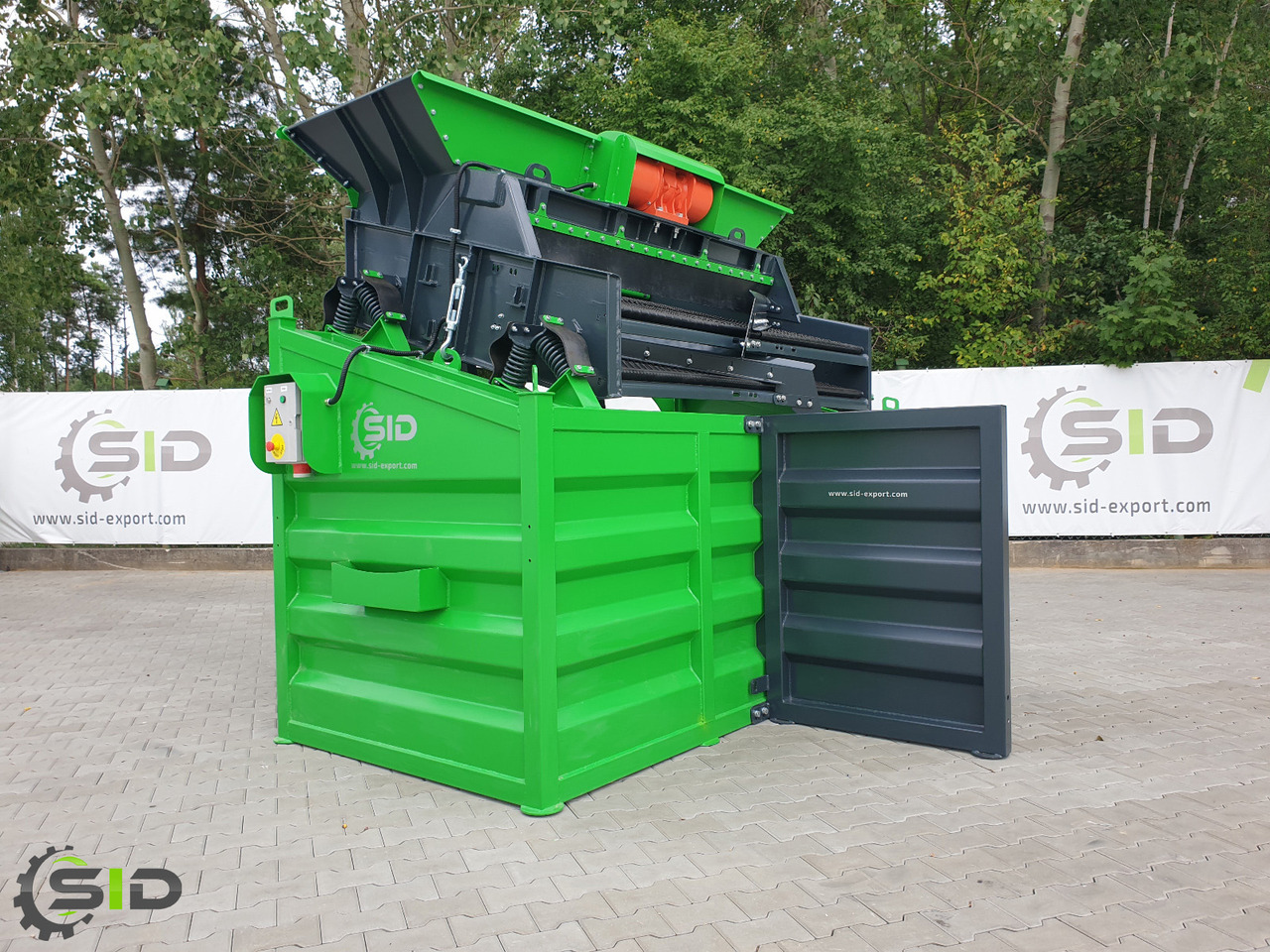

2-fractional vibrating sive machine, which can be separated into 3 fractions. It is extremely comfortable to transport. The small dimensions and lightness of the machine allows you to easily move the screen.

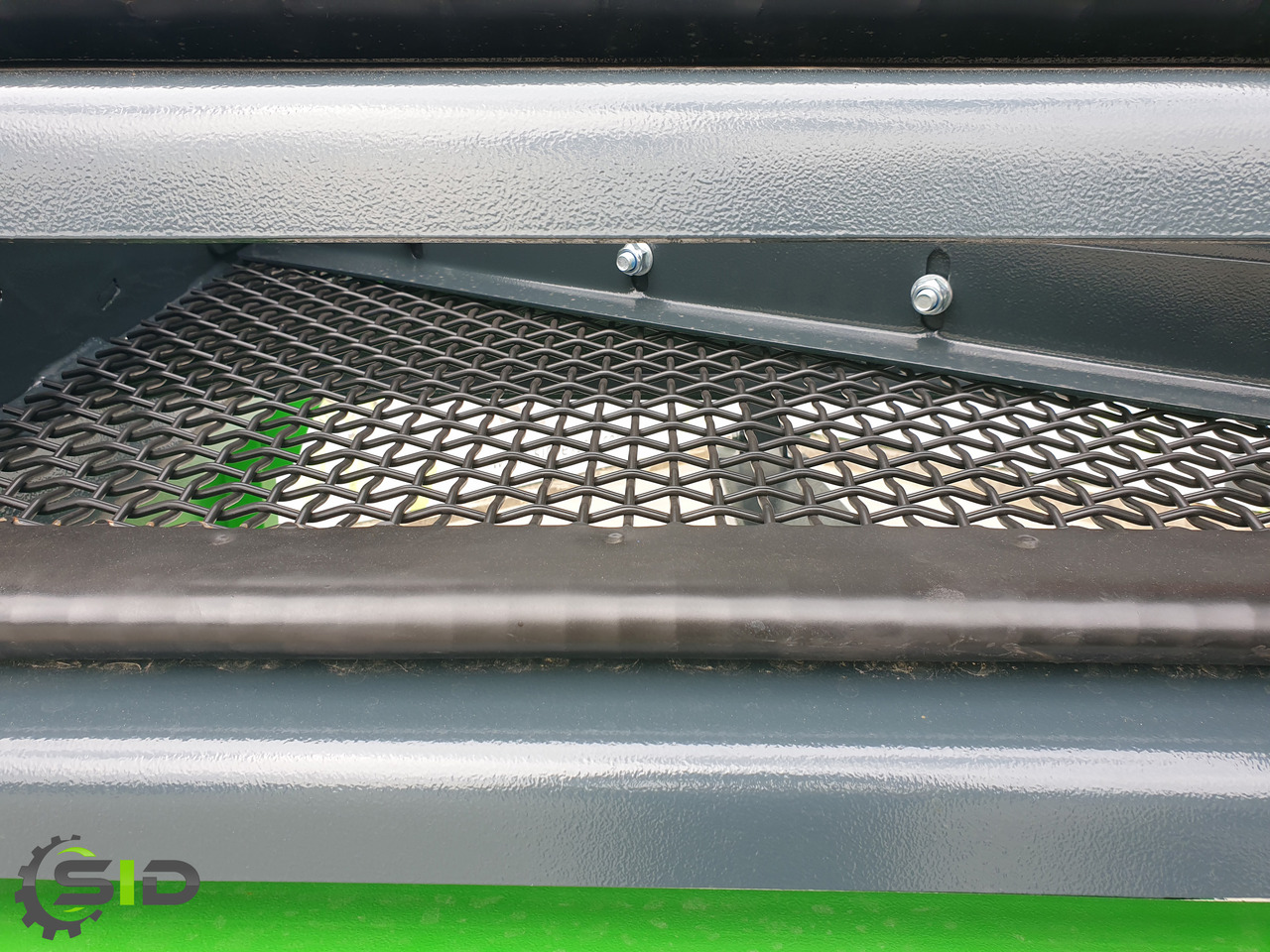

The sifter has two layers of screens, of which the upper screen has dimensions of 50x50mm, while the lower one is a smaller screen of 16x16mm. The design of the equipment allows for quick replacement of screens and disassembly of covers. In order for the machine to be transported safely, it was equipped with turnbuckles.

A powerful electric motor with a power of 1.5 kW combined with a sieve area of 2.7 m2, the machine has a high capacity.

Performance:

- stone 40t / h – 22m³ / h

- gravel 45t / h – 30m³ / h

Dimensions of the charging hopper:

2570mm x 920mm, h1: 650mm, h2: 480mm

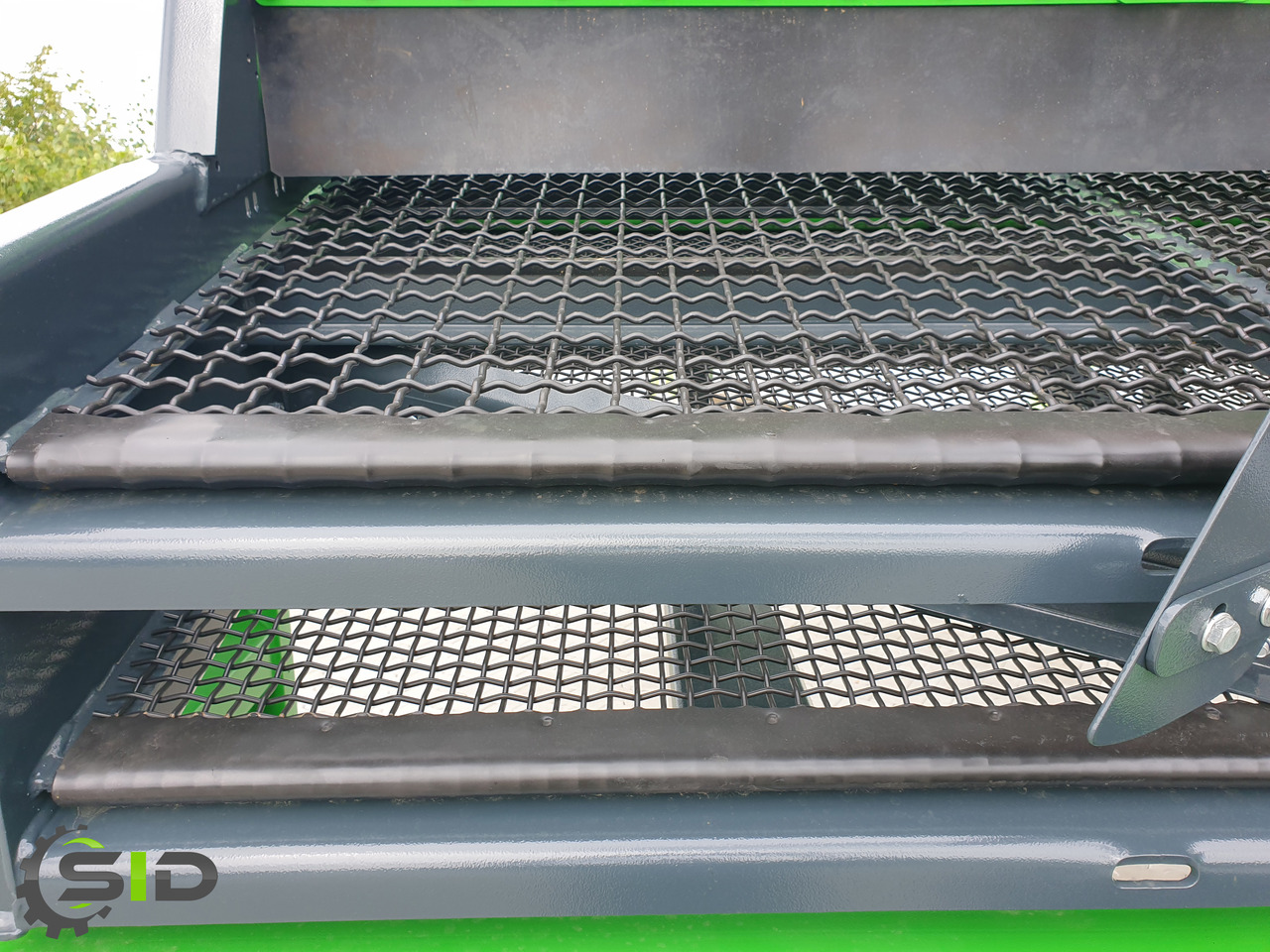

- 2 sieve decks - 1.00m x 1.40m

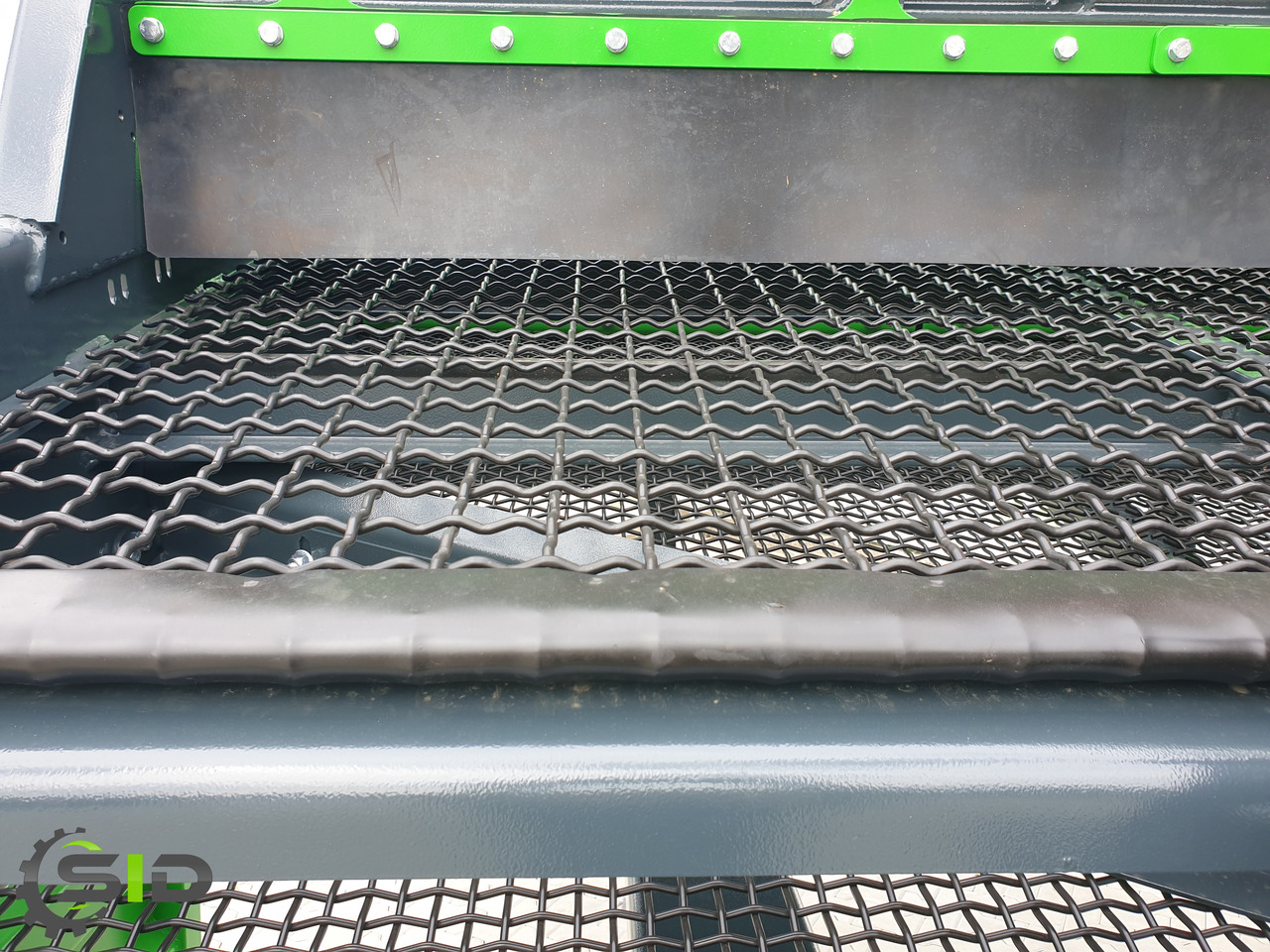

- Top 50x50 sieve, bottom 16x16 sieve.

- At the customer's request, it is possible to produce the machine with the desired size of sieve.

- 2.73m² screening surface.

- The sieves have a longitudinal tension.

- Fast sieve replacement.

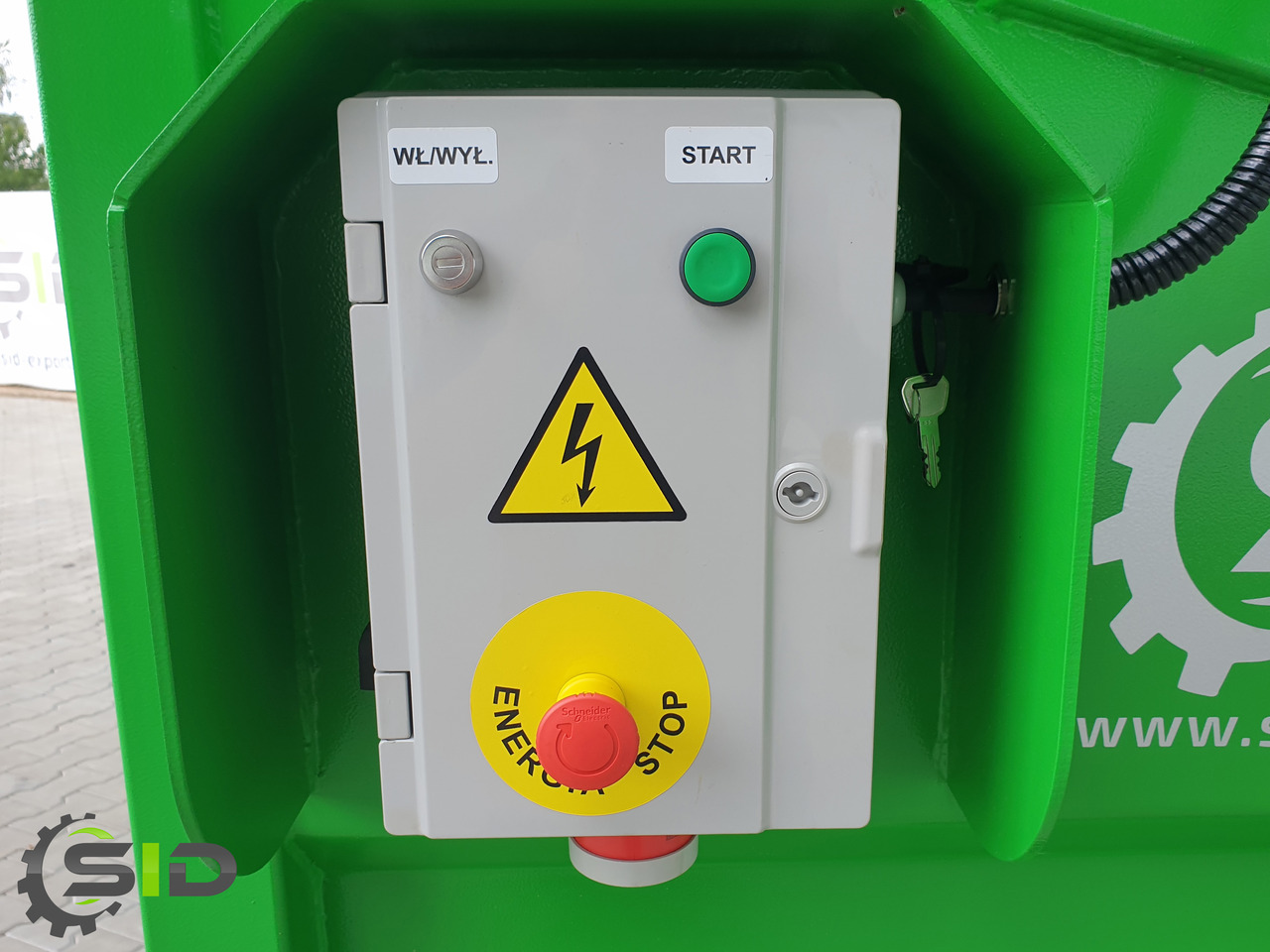

- Powered by a 400V 1.5kW electric motor.

- Power supply from mains or aggregate.

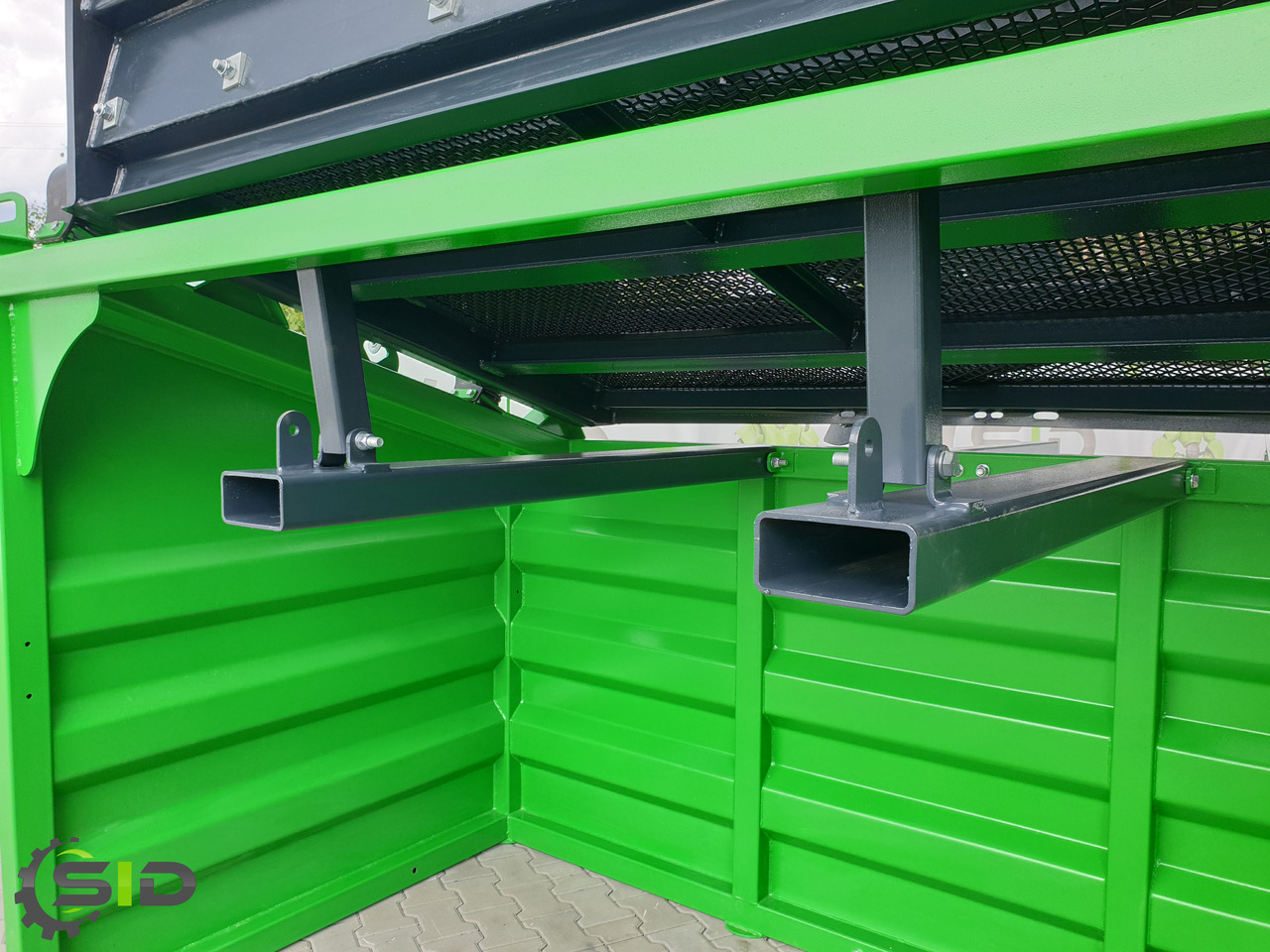

- Handles for transportation.

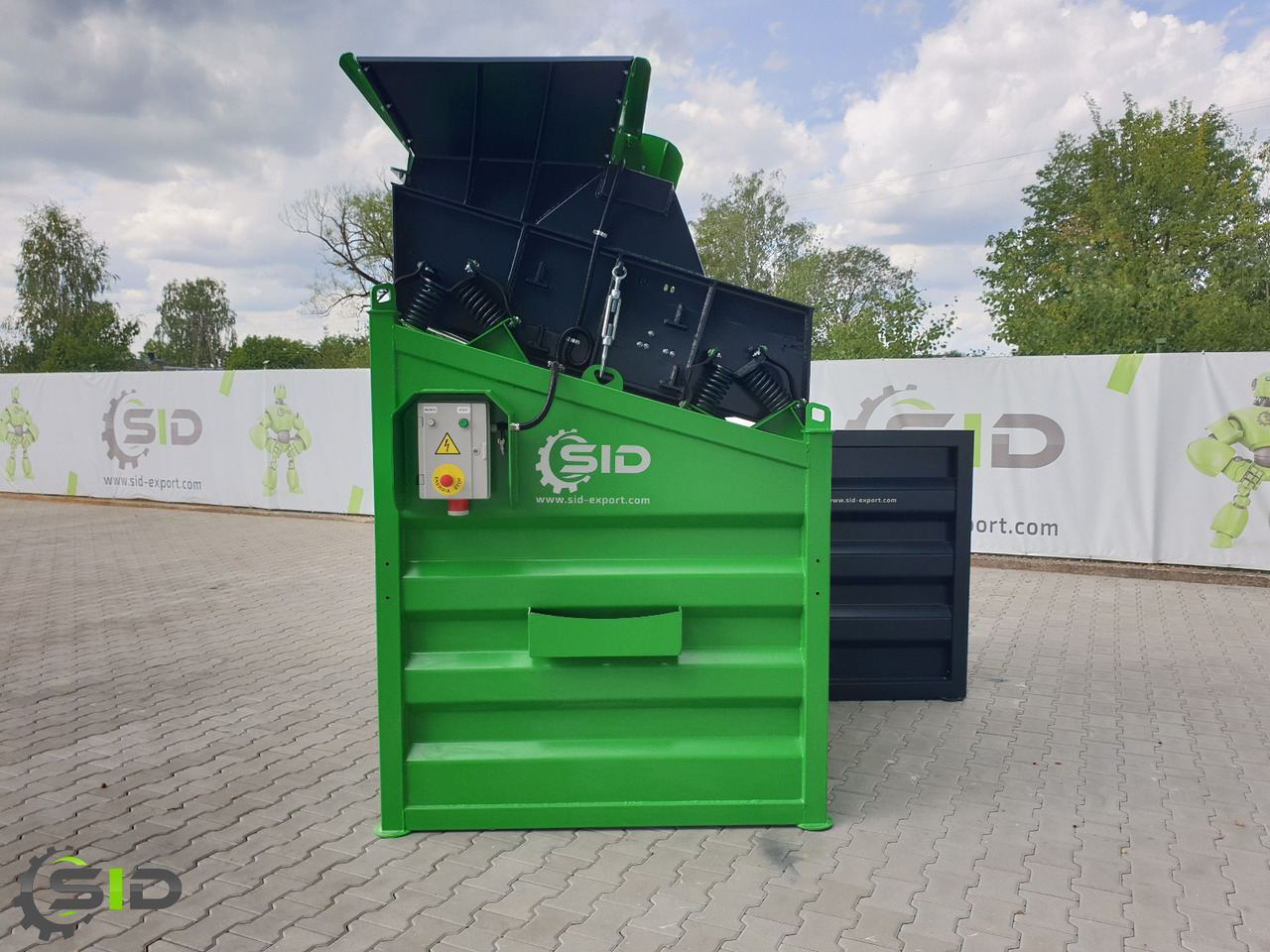

- Turnbuckles for securing during transporting.

- Removable covers.

- 12-month warranty.

Model | Width | Depth | Height | Weight | Price

2 Fractions Setup - 2850 mm - 1500 mm - 2570 mm - 1612 kg - 12 425 €

3 Fractions Setup - 2850 mm - 2500 mm - 2520 mm - 1699 kg - 13 160 €
