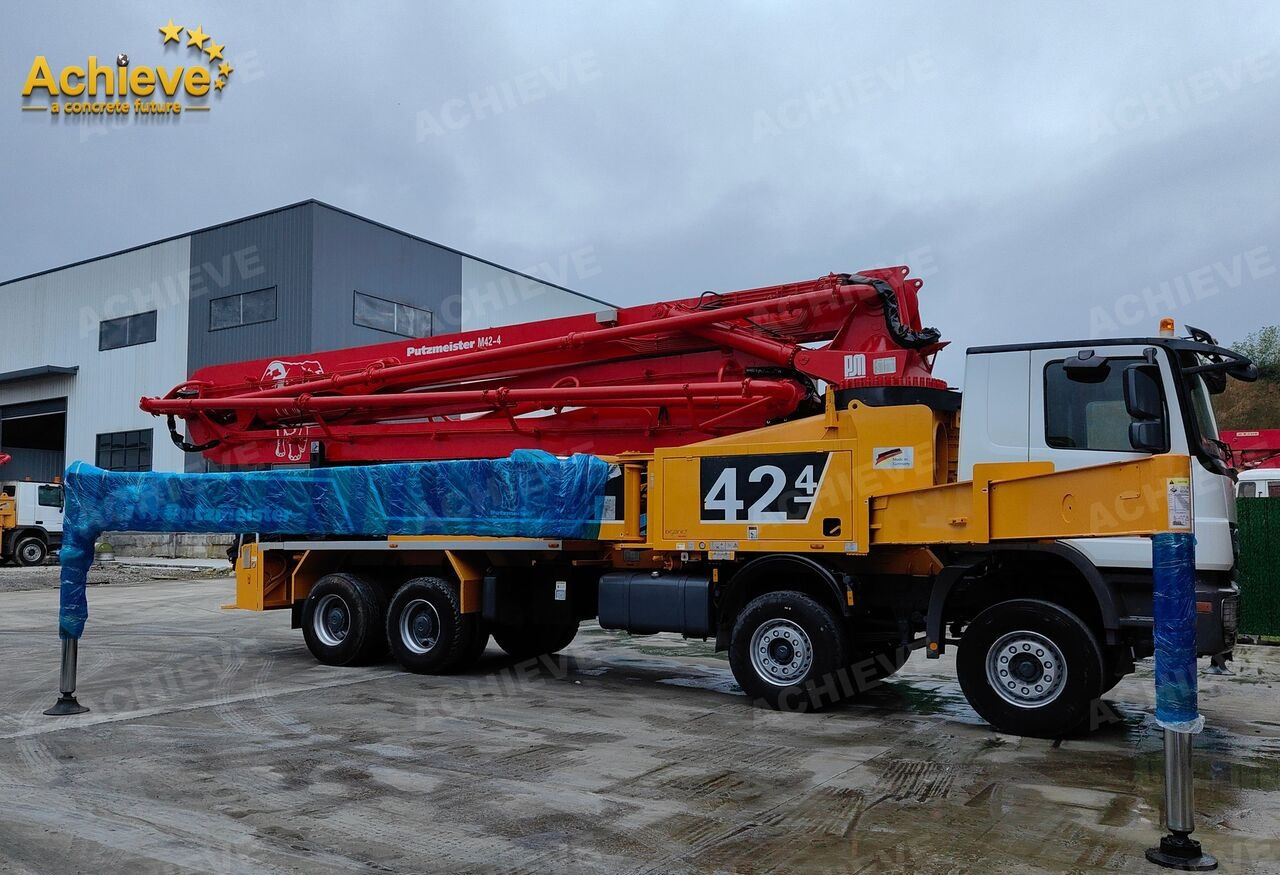

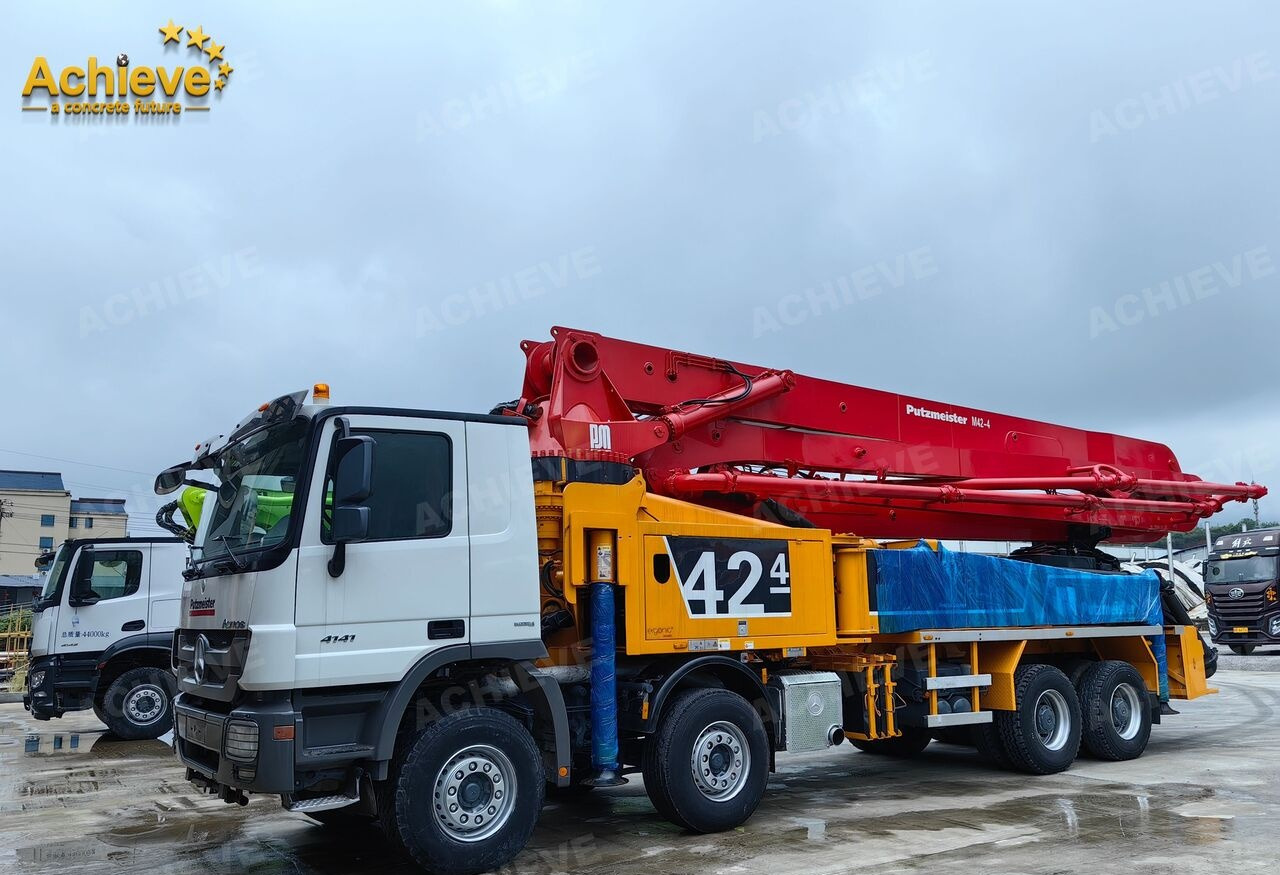

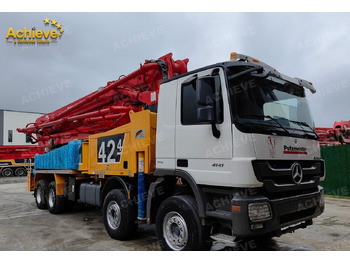

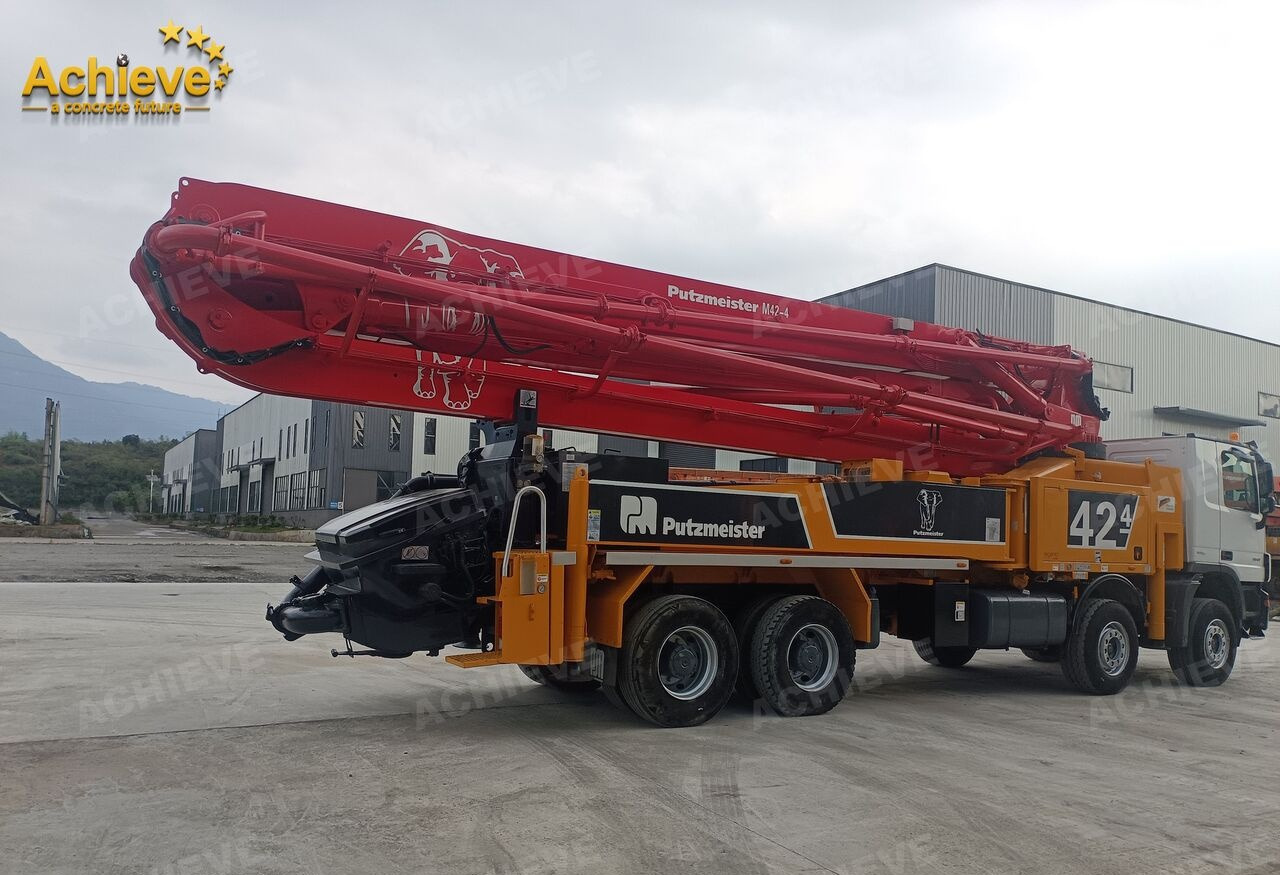

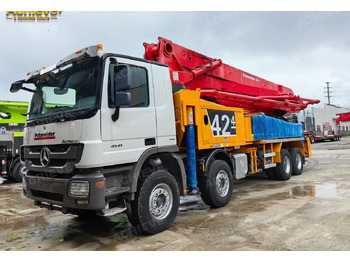

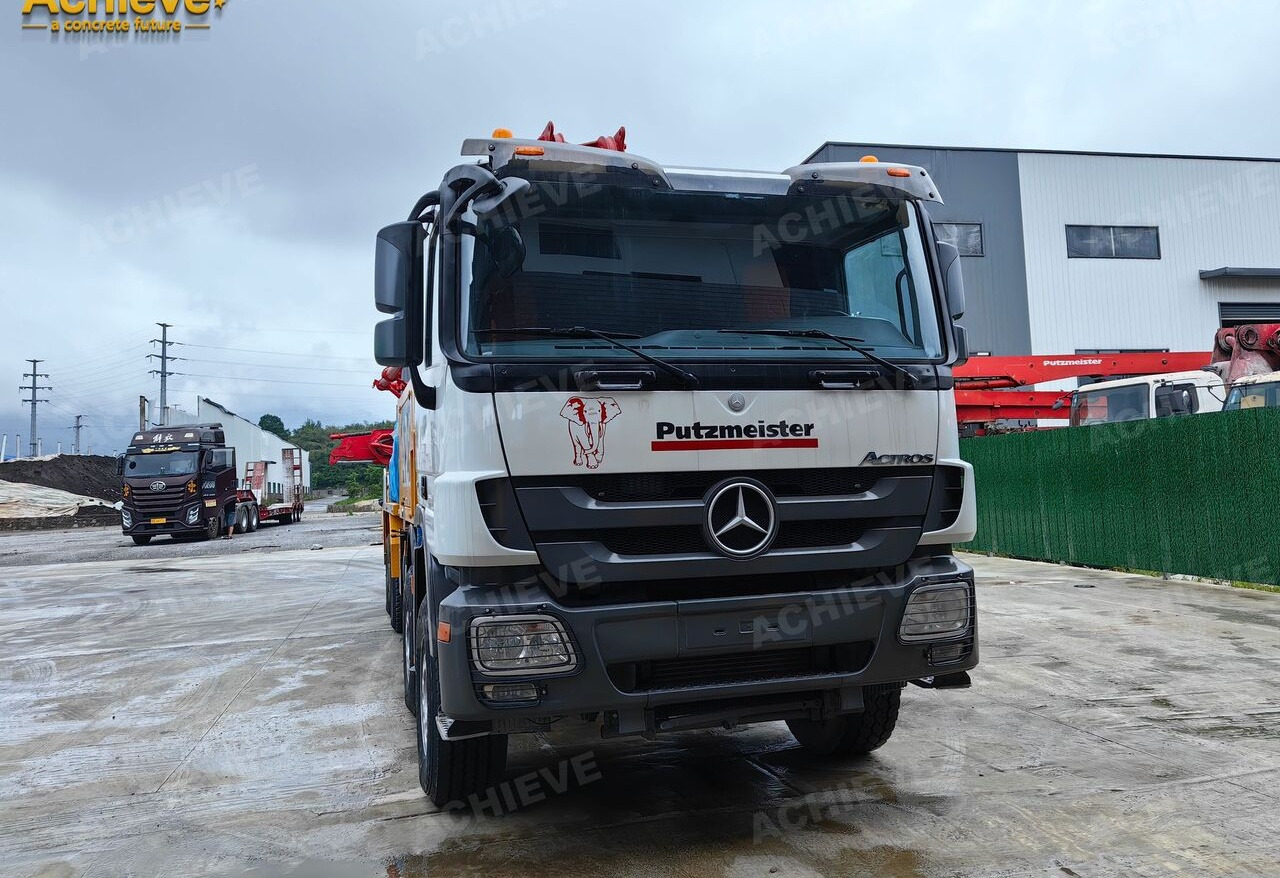

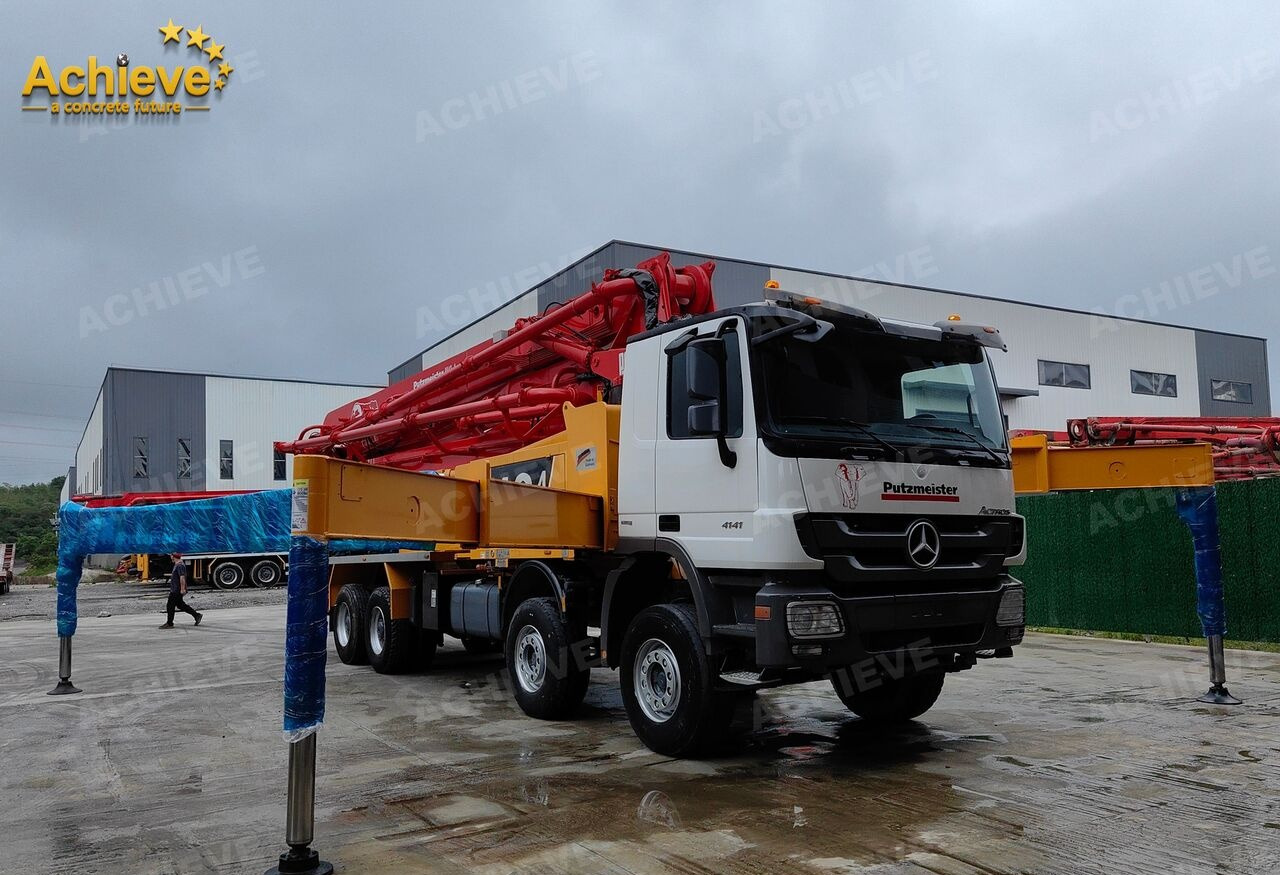

PUTZMEISTER Mercedes-Benz Actros 4141 concrete pumpM42-4R 170 m³【ACHIEVE】TOP CONDITION!!! в лизинг

【ACHIEVE】TOP CONDITION!!! Actros 4141 concrete pumpM42-4R 170 m³/hr M42-4

The Next Generation of the M42-4 Truck-Mounted Concrete Pump

The Putzmeister M42-5 truck-mounted concrete pump has improved maneuverability and weight indices for 4 axle chassis. In Europe the M42-5 is equipped with iSC full flexible support and Ergonic 3 control. For countries outside of Europe it is equipped with the OSS support system, which allows you to work in a limited workspace. The concrete pump length is less than 12 meters, and it weighs less than 32 tons.

Link to Reach Forecast App for M42-5 with Ergonic3. EU Version

Key Features

A gross weight of less than 32 t includes sufficient reserves for payload and operating materials

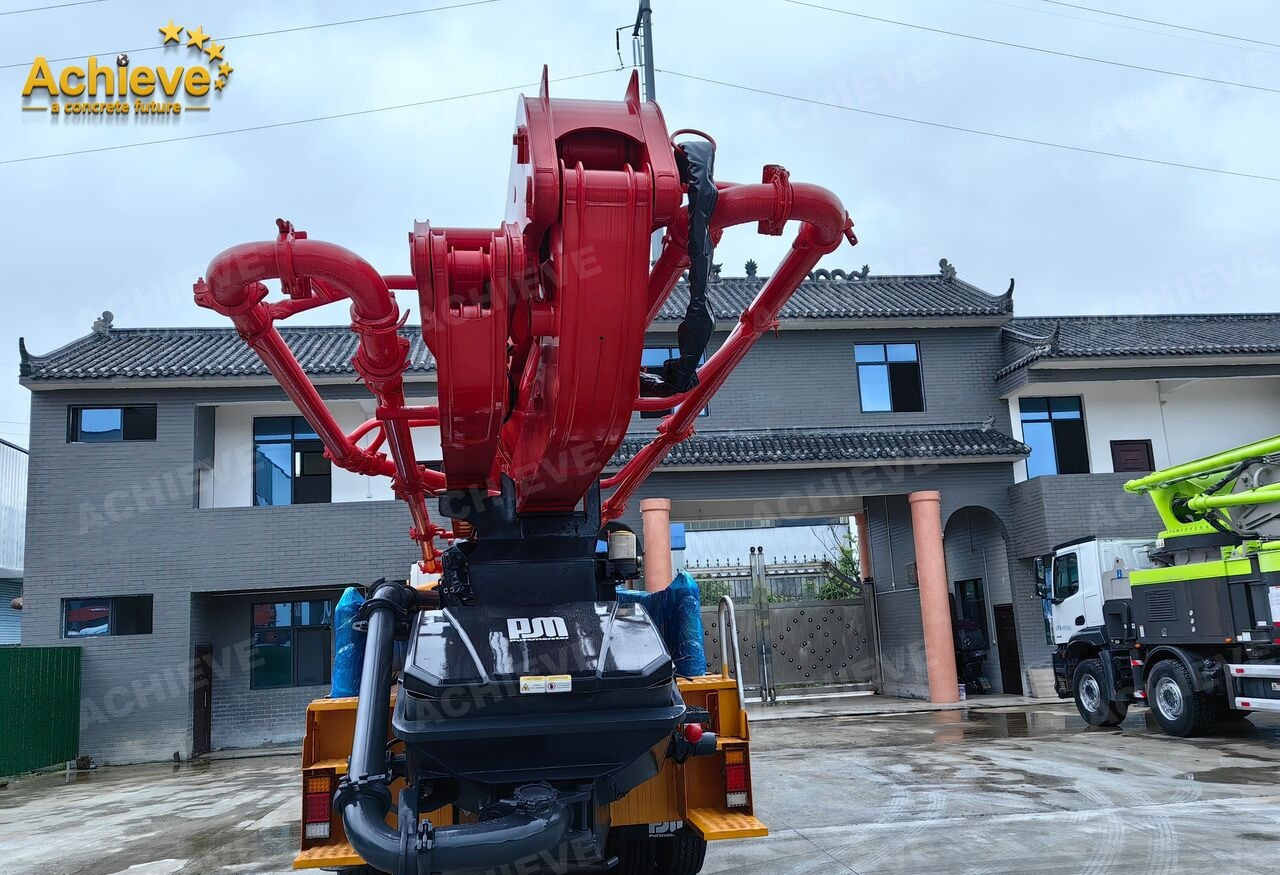

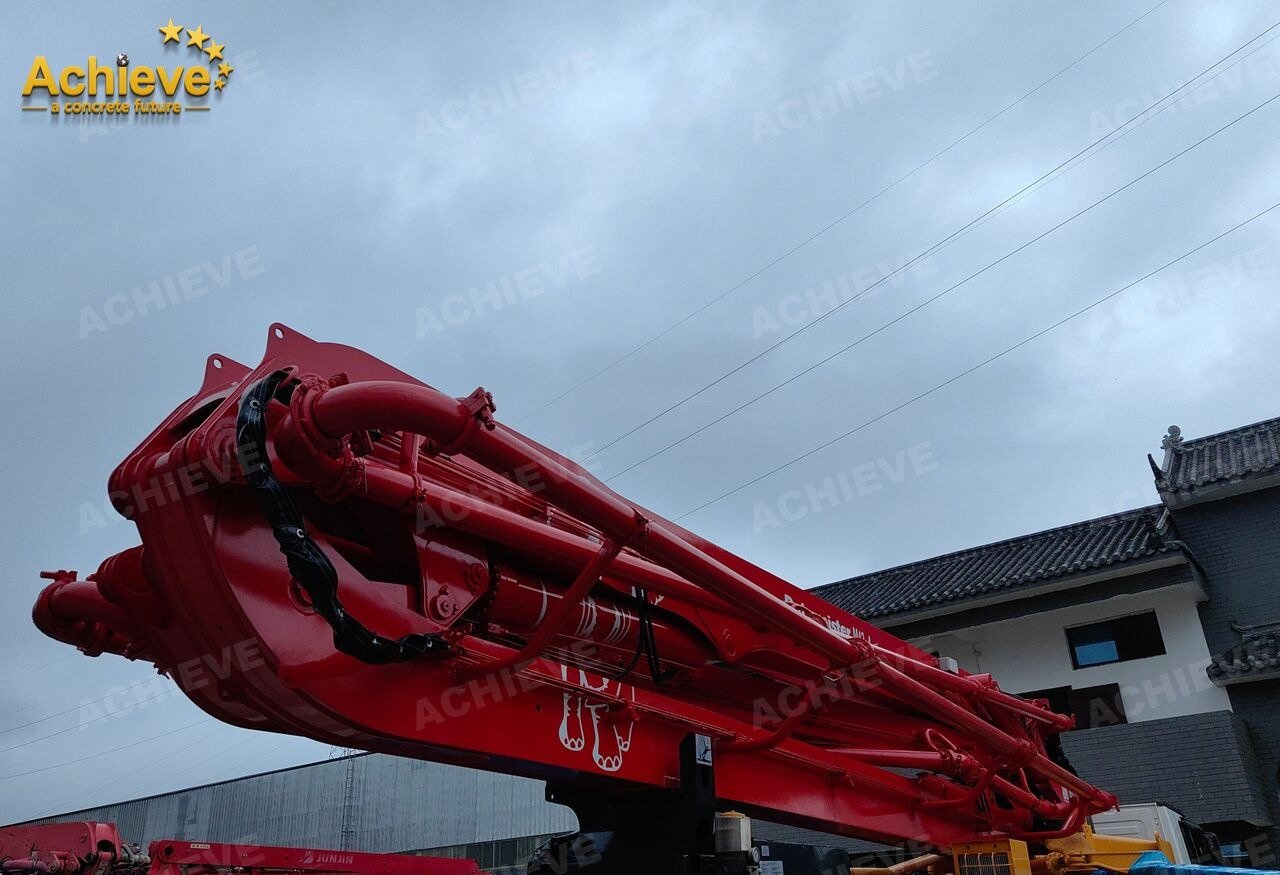

Smooth 5-arm placing boom, thanks to intelligent laying of the delivery line and the balanced development of the steel structure

Efficient work through consistently clever ergonomic design

Even better safety through closer consideration for current standards and guidelines

Service-friendly as a result of its optimised accessibility and consistent bolted concept

Lower service costs thanks to maintenance-free components, fewer special components (only 3 standard delivery line bends) and lower volumes of functional fluids (oil volume reduced by 30 %)

Technical Details

General Information

Number of sections

5

Boom Style

RZ-Folding

Vertical Reach

41.6 m

Horizontal Reach

37.3 m

Reach from Front of Truck

34.5 m

Reach Depth

31 m

Unfolding Height

8.6 m

Rotation

365 degree

End Hose Length max.

4 m

Delivery Line (DN + Pressure)

DN125/5.5 / 85 mm/bar

Support width Standard (front-rear)

7.5 / 8.3 m

Support width OSS (front-rear)

5.0 / 6.1 m

Support width iSC (front/rear)

2.6-7.5

Length x Width x Height

11.35 x 2.5 x 4 mm

Total Weight (approx.)

under 32000 kg

Configuration

Concrete Pump Cell .17 iLS

Concrete Pump Cell .16 H LS

Concrete Pump Cell .16 H

Material Cylinder Diameter-Stroke Length

250/2100 mm

Output (piston side)

170 m³/hr

Delivery Pressure (piston side)

85 bar
