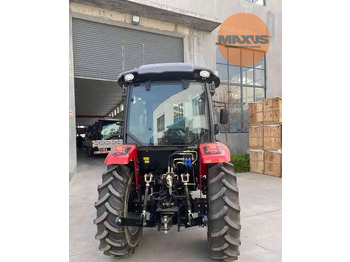

MAXUS tractor 100hp 4x4 в лизинг

MAXUS Specifications

Power (HP): 100

Model: 100, Wheeled Tractor

Frame Type: ROPS (Roll Over Protective Structure)

Drive Type: 4WD

Overall Dimensions (L x W x H) mm: 4190 x 1780 x 2680 (top of the cabin)

Wheelbase mm: 2090

Common Wheel Track (Front/Rear) mm: 1285/1395

Wheel Track (Front/Rear) or Axle mm: 1285/1395

Minimum Ground Clearance mm: 370 (bottom of the traction plate)

Horizontal Distance from the Front Surface of the Clutch Housing to the Centerline of the Rear Drive Shaft mm: 1155

Distance from the Center of the Intermediate Shaft Hole mm: 92

Minimum Weight kg: 3250 (Rollbar), 3300 (Cab)

Standard Counterweight (Front/Rear):

Minimum Service Factor kg/kW: 43.9 (Rollbar), 44.6 (Cab)

Number of Gears (Forward/Reverse): 12+12

Number of Main Gears: 4

Number of Range Shifts: 3X(1+1)

Maximum Theoretical Design Speed km/h: 31.22

Connection Mode between Engine and Main Clutch: Direct Connection

Type of Rollover Protective Device (Cab or ROPS):

Engine Model: YN4E106-30CR4

Engine Construction: Inline, water-cooled, four-stroke

Engine Intake Mode: Naturally Aspirated

Number of Engine Cylinders: 4

Engine Rated Power kW: 74

Engine Calibration Speed RPM: 2400

Engine Cooling Mode: Water Cooling

Air Filter Type: Dry

External Dimensions of Exhaust Muffler Chamber (Length x Width x Thickness or Diameter x Length) mm: φ130 x 450

Weight of Exhaust Muffler Chamber kg: 7.2

Steering System Type: Fully Hydraulic Steering System

Steering of Front Wheels:

Main Gear Shifting Mode: Mechanical Step Gear

Auxiliary Gear Shifting Mode: Mechanical Step Gear

Tire Model (Front/Rear): 9.5-24/14.9-30

Hydraulic Suspension Type: Separate

Suspension Type: Rear Three-Point Suspension

Suspension Category: Category II

Number of Hydraulic Outlets: 1

Full Opening Pressure of Safety Valve for Working Device Mpa: 17°0.5

Number of PTO Splines: 8

Standard Output Shaft Speed RPM: 540/760

Optional Specifications

Tire Model (Front/Rear): 8.3-20, 8.3-24/11-32, 14.9-28, 14.9-26

If you need a different tractor, any POWER or machine is available—just ask a question, and you will receive an answer promptly.
