Horizon BQ-470 PUR-D | binder | 4 clamps | 3.1 mio в лизинг

Number of Colours: 4

-

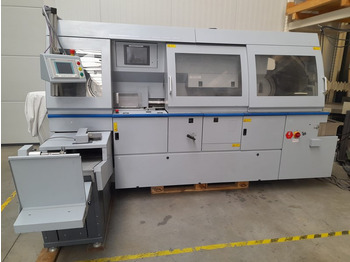

Fully Automated 4-Clamp PUR Perfect Binder from HORIZON

Our offer includes:

- Horizon BQ-470

- Horizon Blast-Pipe-System D, PUR hotmelt system including 2 kg pre-melter

This versatile perfect binder is excellently suited for medium and small print runs as well as single-copy productions. Ideal for the production of photo books, softcover, or hardcover books.

Key Features:

- Strong and Flexible Bindings: PUR hotmelt provides especially strong and flexible bindings, ideal for digital prints and coated papers.

- Q-Jet nozzle application system for PUR hotmelt spine gluing

- Consistent Adhesive Supply: The integrated pre-melter ensures a consistent supply and temperature of the adhesive.

- Separate Side Gluing: Separate side gluing unit for EVA hotmelt.

- Precise Scoring: 4-line positive/negative scoring and 2-line scoring with variable gauze feed for better binding quality.

- User-Friendly Touchscreen: Easy-to-use 10.4-inch color touchscreen allows even less experienced operators to create high-quality bindings.

- Advanced Feeding System: Advanced rotating suction feeding system speeds up production by handling various cover materials without marking them.

Specifications:

Performance and Capacity:

- Maximum Speed: 800 cycles/hour

- Binding Capacity with 2kg PUR (A4 size):

Approx. 6,500 books with 2mm spine thickness and 0.5mm adhesive layer

Approx. 650 books with 20mm spine thickness and 0.5mm adhesive layer

Material Handling:

- Book Block Size: Max. 320 x 320 mm, Min. 145 x 105 mm

- Book Thickness: 1 to 65 mm

- Cover Size: Max. 320 x 660 mm, Min. 135 x 225 mm

- Paper Weight (Content): 60-135g/m²

- Paper Weight (Cover): 80-300g/m² (normal paper), 104.7-348.9g/m² (coated paper)

- Cover Stack Height: Max. 150mm

Gluing:

- PUR Hotmelt: 2kg cartridge (foil bag, Ø 126mm) for spine gluing

- EVA Hotmelt: For side gluing

- Temperature: PUR up to 130°C; EVA 120-200°C

- Heating Time: Approx. 50 min

Technical Requirements:

- Compressed Air: 6 bar dry air (max. 8 bar); connection G1/8"

- Power Supply: 400V three-phase 16A, 6.5kW for binder and 400V three-phase 16A, 6.0kW for melter

Total Weight: 2,196kg

3 MONTHS WARRANTY

We guarantee that the machine operates perfectly and we take responsibility for 3 months. Even after this period, we are always there for you and support you in solving any problems.

All-Inclusive Service Package

We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.

Sustainable and Economical

Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
