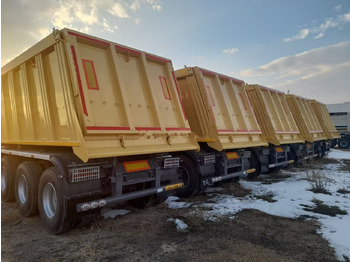

Reis Treyler New в лизинг

TECHINCAL SPECIFICATIONS OF TIPPER SEMI -TRAILER

Chassis

—ST 52 Material “I” profile it is produced with gas welding, it

has high quality strength 4mm,

Length of the Chassis 8,3m for 6x4 Truck

Tare weight approximate 9,6 ton

King Pin

—2” king – pin detachable from below made by

SAE standards 8 bolt type.

Axle —3 x 14.000 kg carrying capacity SERİN brand

Distance Between Axles —1380 mm

Brakes & Suspension —Mechanical Suspension

—Drum Brake

Landing gear

—Double Speed,

—24000 kg carrying capacity,

—JOST brand mechanical Landing Gears,

Rear Bumper

—Suitable 70/221 / AT-version of the rear bumper,

Tire Chock —Carriers with 1 unit wheel chock

Tires and Rimes —12+1 PCS 315 / 80 R 22,5

—Goodyear, Pirelli or Bridgestone

Mud Cover

—2 PCS. Galvanized steel mudguards with plastic edges.

Spear Wheel Carrier

—1 piece tire carrier

Tool Box

—1 PCS Tool Box.

Water Tank

—40-liter Plastic water tank with liquid soap cup

Paint

—Steel Material surface are cleaned by grit metal and send

which is shot blasted on the surfaces of the metal.

—2 Floor Epoxy primers are made and paint will be choose

on demand of the customer,

—STANDART YELLOW

Electrical System and

Lightening

System

—3 units amber-colored lights placed on the both side,

—Park lamps at the rear side of the vehicle,

—license plate lamps,

—reflector triangles,

—Flame proof electrical system

—2 X 7-pin electrical socket.

Equipment (Tools)

—Hub key,

—Axles Bolt Nut key,

—Tool box keys,

Hydraulic System

—5 stage Cold Shooting Steel Profile and Dual Lift x 5700

Front and middle of the lift cylinder with mounting brackets

Tipping Weight 50 – 52 tons

Oil Tank

—Oil Tank made from 3 mm thickness steel sheet

Volume

—32 m ³

Legal Payload

—32,5 ton

Max. Payload

— 54,5 ton

Total Combination

—51 ton
