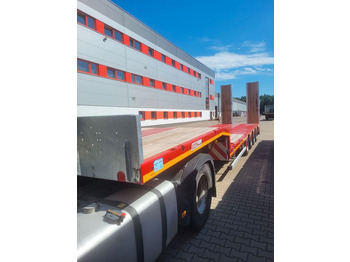

Faymonville MAX TRAILER MAX100-N-4A-9.30-U в лизинг

Technical data

MAX100-N-4A-9.30-U

Speed: 80 km/h

Total weight: 60,800 kg

Fifth wheel load: 18,000 kg

Axle load: 42,800 kg

Tare (+/- 3%): 11,726 kg

Load capacity +/-: 49,074 kg

Jib length: 3,450 mm

Loaded coupling height: 1,250 mm

Turning radius from kingpin: 2,300 mm

Work platform length: 9,300 mm

Extension: 6,100 mm

Axle distance: 1,360 mm

Height with maximum load: 860 mm

Width: 2,540 mmSuspension: -55/ +145 mm*

Total weight depends on saddle load.Technical description

Gooseneck Gooseneck with bevel at the back +/- 750 mm x 10°3 pairs of fastening rings (LC 5,000 daN).Hardwood flooring 30 mm thick.

Loading platform: Sliding loading platform with bevel at the back -/+

1000 mm x 85 pairs of fastening rings folding outwards (LC 5,000 daN).

3 pairs of fastening rings folding outwards (LC 10,000daN).

One pair of fastening rings at the rear of the loadingplatform (LC 10,000 daN)Hardwood flooring 48 mm thick, above the axlecorrugated sheet.

Two-piece steelladders

Pair of galvanized two-piece steel ladders2750+1400 x 800 mmwith 48 mm thick hardwood coveringLadder with hydraulic folding. slidingparts and hydraulic lifting mechanismMaximum load per pair 40,000 kg
