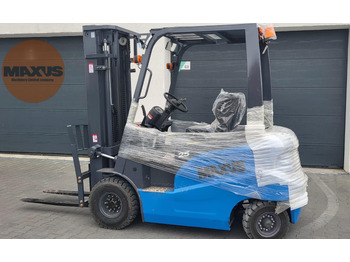

New Electric forklift MAXUS 2500kg 2500kg в лизинг
Опубликовано: 5мес. 9д.
Опубликовано: 5мес. 9д.
Poland, Gdańsk, ul. Kontenerowa 21, Magazyn Przeładunkowy.Model Maxus 25
Power Type: Battery
Rated Load Capacity: 2500 kg
Load Center Distance: 500 mm
Drive Type: Seat
Length with Forks (L1): 3380 mm
Length without Forks (L2): 2310 mm
Overall Width (B): 1150 mm
Height without Lifting Frame (H1): 2000 mm
Upper Frame Height (H2): 2145 mm
Max. Working Height (H3): 3995 mm
Distance from Seat to Upper Light (L3): 1020 mm
Wheelbase (L4): 1515 mm
Front Overhang (Y): 483 mm
Rear Overhang (L5): 400 mm
Front Wheel Tread (R): 970 mm
Rear Wheel Tread (P): 950 mm
Min. Ground Clearance (F): 135 mm
Max. Lifting Height (H): 3000 mm or optional 3300 mm
Free Lifting Height (H4): 170 mm
Fork Exchange Size (S): 1024/200 mm
Min. Turning Radius (WA): 2050 mm
Min. Aisle Width (RA): 3760 mm (90-degree turn)
Frame Angle (a/β): 6°/12°
Max. Lifting Speed (without load): 380 mm/s
Max. Lifting Speed (with full load): 280 mm/s
Max. Speed (without load): 15 km/h
Max. Speed (with full load): 14 km/h
Max. Climbing Angle: ≤ 15%
Total Weight: 4200 kg
Drive Wheel: 2x/2
Tire Model: Pneumatic tire
Front Tire: 7.00-12
Rear Tire: 18x7-8
Hydraulic Handbrake Pedal: Yes
Brake Type: M-Hand
Battery Voltage/Capacity: 48V/300Ah or optional 48V/500Ah
Drive Motor Power: 11.0 kW AC
Pump Power: 12.0 kW AC
Working Time: 10 hours
Charging Time: 7 hours
