Новый Портальный бункеровоз Mitsubishi Fuso 7C18 KING BR4

Dealer's warranty: 24 months

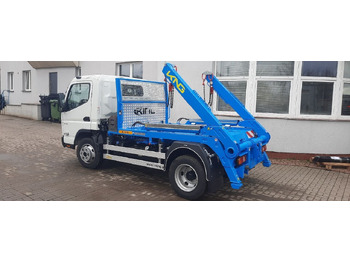

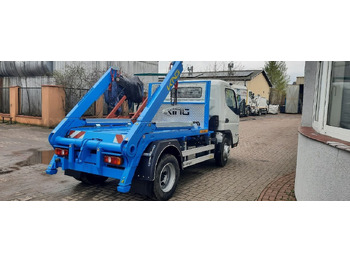

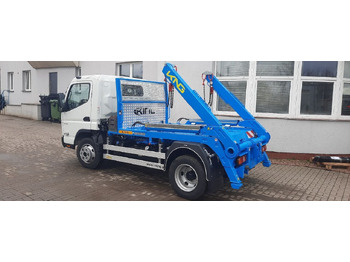

New Mitsubishi Fuso 7C15 with KING BR4 gantry device

Engine

110 kW (150 HP) engine, 3500 rpm Euro 6 engine, OBD-D standard

Engine start and stop system

Manual engine speed governor

Clutch and gearbox

Manual gearbox

Power take-off 200 Nm, for a hydraulic pump.

Axles and axle suspension

High-friction differential

The gear ratio of the axle i = 4.875

Tires and rims

Spare wheel holder with individual security

Spare wheel / rims

Rear traction tread tires

Frame and frame building elements

Main fuel tank 100l, AdBlue tank 12l

AdBlue tank cover

3-piece bumper (plastic / steel)

Rear underrun protection with electric socket

Braking system

ESP

Disc brakes on the front and rear axles

ABS with electronic brake force distribution

Outside of the cabin

Single comfort cabin

Tilting driver's cabin

Elongated mirror handles

Heated rear view mirrors

Central locking with remote control

Immobilizer with transponder

The interior of the cabin

Driver seat armrest

Comfort adjustable steering seat with vertical suspension

The Isringhausen comfort driver seat has a mechanical suspension, armrest and lumbar support.

Two-way adjustable steering column

Driver airbag with seat belt pretensioners

Vinyl flooring

Electro-windshield driver and passenger side

DTCO 4.0 smart digital tachograph (2 drivers)

Adjustable instrument panel lighting

Reverse gear engaged warning signal

Radio with Bluetooth

Automatic air conditioning control system

This air conditioning system automatically reaches and maintains the desired temperature in the cab, both in cooling and heating mode. It fully automatically adjusts the quantity, distribution and air temperature to the ambient conditions.

Lockable glove box

Central glove box in the dashboard

Storage compartment on the rear wall of the cabin

Storage space between the seats

Cup holder

Two-chamber roof storage

Electrics / Electronics

Double battery cover

preparation for installation of a 24V current disconnector

28V / 140A alternator, 24V converters

Daytime running lights

Halogen fog lights

Speed ​​limiter 90 km / h

Emergency Braking Assist (AEBS)

Lane Keep Assist (LDWS)

Other equipment

Number plate mount at the front

Scattolini control code

Manual tach. digital in Polish

User manual in Polish

GATE DEVICE BR4

Basic information:

• Nominal loading capacity - 4000 kg

• Tiltable telescopic main arms

• Own weight of the device - 1154 kg

• Max pressure - 20 MPa

• Handling of DIN 30735-1 containers; max width - 1380 mm; max length - 2550

Equipment:

• Hook construction frame made of high quality steel with laser cut holes

• Left-hand external device control

• Shot-blasted steel structure, then painted with epoxy primer paint and surface painted with polyurethane paint in the RAL color system

• Hydraulic container lock

• Adjustable length of the slings

• Hydraulic oil tank with oil level indicator

• Cab rear wall cover

• Hydraulically extendable supports

• Hydraulic pump

• Side underrun protection

• Rear wheel arches

• KING mud flaps

• Conducting the UDT procedure

• Installation on a vehicle

• Individual approval
