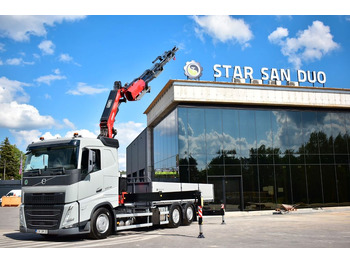

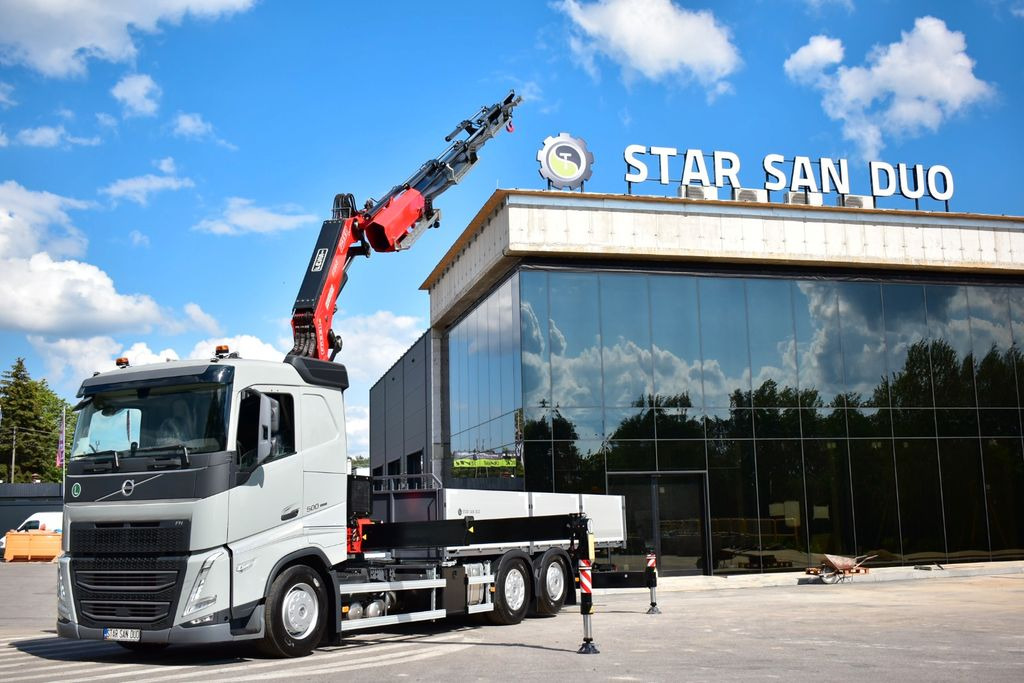

Новый Автоманипулятор, Грузовик бортовой/ Платформа Volvo FH 500 6x2 FASSI F 545 RA 2.25 NEW ! CRANE KRAN

We offer you a car for sale:

We have an authorized SERVICE of cranes, e.g. FASSI and we repair cranes of all other brands and trucks.

1. Volvo FH D13 500 WB4900 6x2 chassis

• 6x2 drive

• Front pneumatic axle 9,000 kg

• Rear bogie cushion 23,000 kg - the first drive axle 13 tons, the second hydraulic steering axle 10 tons,

• The technical weight of the set is 50,000 kg

• Frame reinforced along the entire length (internal insert 5mm) • D13 engine 500kM Euro 6 phase E,

• VEB+ engine brake,

• I-schift automatic gearbox, one crawler gear,

• Rear axle without hub reduction gear ratio 2.64

• Rear coupler fi 40mm Rockinger,

• Wheelbase 4900mm,

• Standard height FH sleeper cabin,

• Color Gray Silver grey,

• Two couches,

• Two heated pneumatic comfort seats 1+1,

• Webasto dry 2 kW, fridge in the cabin,

• Leather multifunction steering wheel,

• An extensive set of indicators,

• Rear view camera and blind spot camera with additional multimedia display,

• EC 4.0 tachograph

• Preparation for CB and FMS communication,

• 6 LED work lamps,

• Front and rear main LED lamps,

• Rooster flashing lamps on the roof,

• Central locking with remote control,

• Axle load indicator,

• Forward collision warning system with electronic brake,

2. Fassi F545RA.2.25 crane mounted behind the cab

• 5 hydraulic arms

• 5/6 function

• Unlimited 360 degree rotation

• Support legs rotated 180 degrees with a spacing of 7790mm

• Additional support legs with a spacing of 4984 mm

• Radio control with Start/Stop control and engine speed control

• FSC H control system that controls stability and manages lifting functions depending on the spacing of supports

• LS variable displacement hydraulic pump,

• Crane adapted for jib mounting

• Winch preparation - mounting plate, 7th hydraulic section and remote control.

• OPTION - 2T or 3T winch, winch can operate with crane alone or with crane and jib.

• OPTION - additional hydraulic arms (maximum 8 arms)

• OPTION - additional hand arms, • OPTION - additional jib - (maximum 6 hydraulic arms)

3. Fixed chest

• Box outside approx. 6350mm, width outside 2550mm (inside approx. 6275mm, inside width 2480mm)

• Twist Lock fastenings in the floor for 20' containers

• Steel front wall with a height of 1000mm - holders for chains and slings,

• 25mm removable aluminum rear board, 800mm high,

• 25mm aluminum side boards with a height of 800mm,

• Removable side boards divided into 3,

• Two 800mm removable central and rear pillars,

• 9 load lugs in the siding per side - load capacity 3 tons each,

• The floor is made of anti-slip plywood, 24mm thick,

• Road payload approx. 7.5 tonnes
